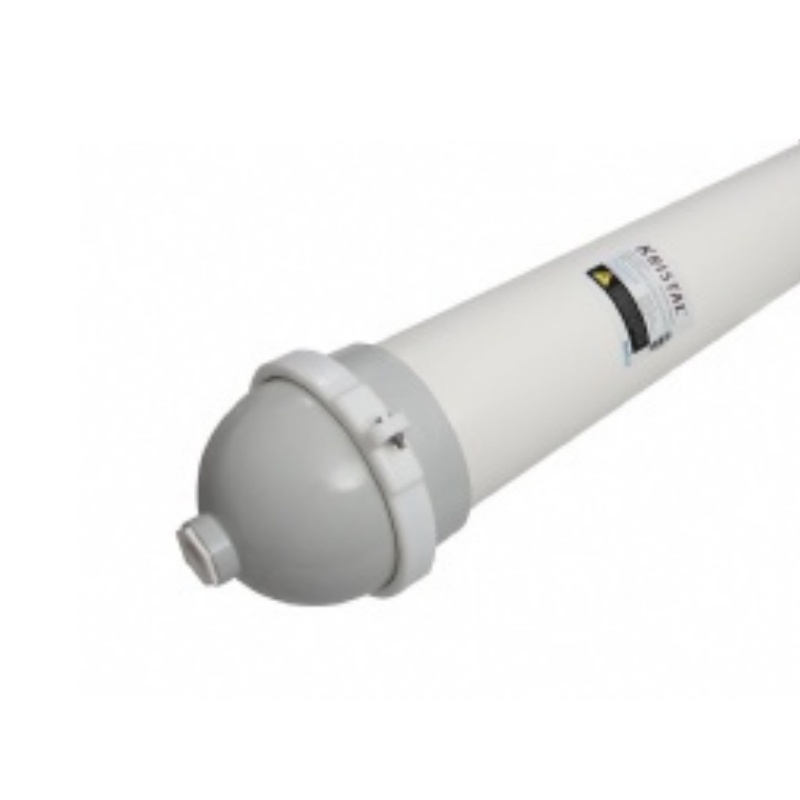

Hyflux Water Filter K600ETI-55 Module

Product No.：K600ETI-55
Online Inquiry

General Inforamtion

When it comes to filtration, Hyflux’s Kristal® polymeric hollow fibre ultrafiltration membranes and systems offer a superior level of performance, efficiency and reliability. Designed with a cross-flow and out-to-in configuration, Kristal® membranes deliver consistent, high quality product water even in challenging feed water conditions.

Hyflux Water Filter K600ET-55 Module Product Data Sheet

Product Features

High tensile strength
Enhanced hydrophilicity
Low fouling
Consistent, high quality permeate
Sharp rejection profile
Long lifespan
Small footprint

Dimensions

Hyflux Water Filter K600ETI-55 Module Dimension

Model

Overall Diameter×Length

(mm /inch)

Membrane Area

(m² /ft²)

K600ETI-55

344×2,350 /13.54×92.52

55 /592

Specifications

Features	UOM	Specifications
Structure	-	Asymmetric
Base Material	-	Reinforced polyethersulfone (PES)
Outer diameter	mm /inch	1.48 / 0.058
Inner diameter	mm /inch	0.65 / 0.026
Nominal Molecular Weight Cut Off	Daltons	120,000
Bacteria rejection	%	> 99.9999
Tensile force	N	11-12
Feed Inlet	inch	1.5 NPT
Permeate Outlet	inch	1.5 NPT
Reject Outlet	inch	1.5 NPT
Dry Weight	Kg / lbs	60 /132
Wet Weight	Kg / lbs	100 /220
Housing	-	PVC
End Caps	-	PVC
Sealant	-	Proprietary composite potting materials

Operating Parameters and Limits

Flow type	Outside-in
Operating Temperature Range	5--40°C
Clean water flux at 30°C	200 LMH /118 GFD
Operating pH Range	2-10
Cleaning pH Range	2-11
Max. NaOCl – cleaning	500 ppm
Max. NaOCl – continuous	10 ppm
Operating TMP	0.2-1.5 bar
Max Feed Pressure	2.5 bar
Max. backwash TMP	2.0 bar
Max. cleaning TMP (bar)	2.0 bar

Module Assembly

Each Kristal® module is a collection of thousands of Kristal® UF hollow fibres secured on both ends by a proprietary composite potting material and enclosed in a compact PVC housing.
Every Kristal® module goes through a membrane integrity test before it is delivered to customers.

Item	Description	Material
A	Permeate port	PVC
B	Permeate end cap	PVC
C	O-ring (permeate side)	EPDM
D	Clamps (permeate side)	POM
E	Reject chamber /port	PVC
F	Housing	PVC
G	Feed end cap	PVC
H	Locating base	ABS
