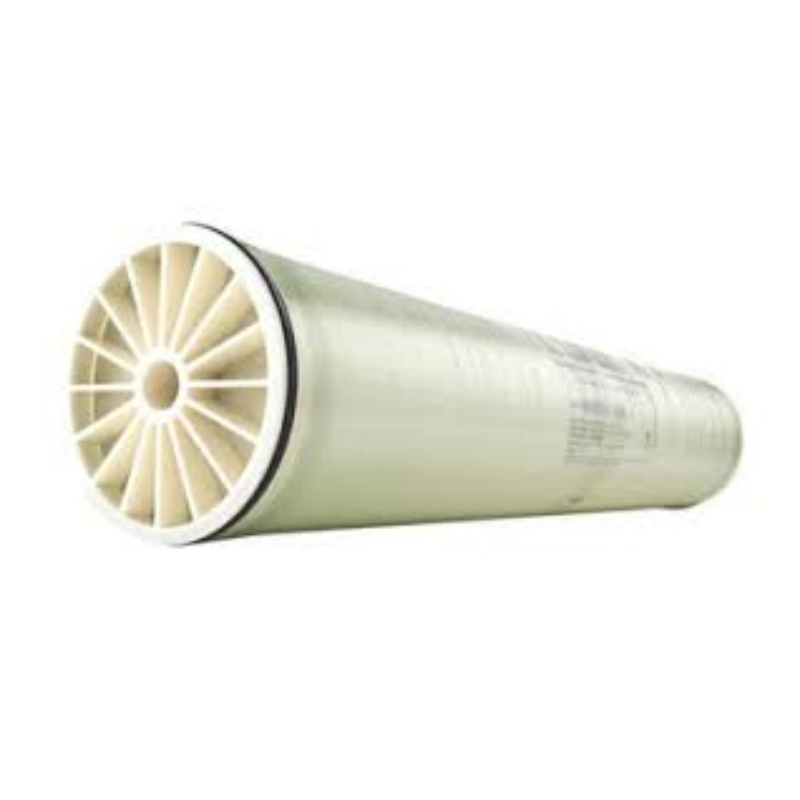

DuPont DOW FilmTec RO Membrane SW30HR-380 Dry

Product No.：SW30HR-380 135137
Online Inquiry

Description

DuPont FilmTec™ SW30HR-380 Dry RO Elements are a premium-grade seawater reverse osmosis element featuring both high active area and high salt rejection to offer the best long-term economics for seawater desalination systems.
DuPont DOW FilmTec RO Membrane SW30HR-380 Dry Product Data Sheet

Key Features

Outstanding durability resulting in stable long-term performance.

Key Applications

Seawater desalination.
Power generation.
Steel and metal.
Chemical and petrochemical.

Typical Properties

FilmTec™ Element	Active area		Feed spacer thickness (mil)	Permeate flow rate		Stabilized Salt Rejection (%)	Minimum salt rejection (%)
	ft²	m²		gpd	m³/d
SW30HR-380	380	35	28	6,900	24.6	99.7	99.65

The above benchmark values are based on the following test conditions: 32,000 ppm NaCl, 5 ppm boron, 800 psi (5.5 MPa), 77°F (25°C), pH 8, 8% recovery.
Permeate flows for individual elements may vary ± 15%.
Sales specifications may vary as design revisions take place.

Element Dimensions

DuPont DOW FilmTec RO Membrane SW30HR-380 Dimension

	Dimensions – inches (mm)
FilmTec™ Element	A	B	C
SW30HR-380	40.0 (1,016)	1.125 ID (29 ID)	7.9 (201)

ID - Inner Diameter

DIA - Diameter

1. For element weight information, refer to What is the weight of FilmTec™ elements as delivered?

2. For element packing and shipping information, refer to How are FilmTec™ elements packaged and shipped?

Suggested Operating Conditions

Membrane Type	Polyamide Thin-Film Composite
Maximum Operating Temperaturea	113°F (45°C)
Maximum Operating Pressure	1,200 psig (83 bar)
Maximum Pressure Drop Per element Per pressure vessuel (minimum 4 elements)	15 psig (1.0 bar) 50 psig (3.5 bar)
pH Range Continuous Operation Short-term Cleaning (30 min)	2 - 11 1 - 13
Maximum Feed Silt Density Index	SDI 5
Free Chlorine Tolerance	< 0.1 ppm

1. For recommended feed and permeate flow rates, flux, and recovery for various feed sources, refer to FilmTec™ Design Guidelines for multiple-element systems of 8-inch elements (Form No. 45-D01695-en).
2. Maximum temperature for continuous operation above pH 10 is 95°F (35°C).
3. Consult your DuPont representative for advice on applications above 95°F (35°C). Relevant information regarding operation at high temperature and pressure: FilmTec™ Seawater Elements Operating Limits (Form No. 45-D00691-en) and Shimming Elements (Form No. 45-D01057-en).
4. Refer to FilmTec™ Cleaning Guidelines (Form No. 45-D01696-en).
5. Oxidation damage is not covered under warranty, DuPont recommends removing residual free chlorine by pretreatment prior to membrane exposure. Please refer to Dechlorinating Feedwater (Form No. 45-D01569-en) for more information.

General Information

Keep elements moist at all times after initial wetting.
For successful operation of Reverse Osmosis (RO) and Nanofiltration (NF) membrane systems, the operation must follow the guidelines provided in the FilmTec™ Reverse Osmosis / Nanofiltration Elements Operation Excellence and Limiting Conditions Tech Fact (Form No. 45-D04388-en).
To prevent biological growth during prolonged system shutdowns, it is recommended that membrane elements be immersed in a preservative solution.
The customer is fully responsible for the effects of incompatible chemicals and lubricants on elements.
Avoid static permeate-side backpressure at all times.
Permeate obtained from the first hour of operation should be discarded.
The use of this product in and of itself does not necessarily guarantee the removal of cysts and pathogens from water. Effective cyst and pathogen reduction is dependent on the complete system design and on the operation and maintenance of the system.

Important Information

Please consider good operating practices for the optimal performance of the Reverse Osmosis membrane elements to assure damage free operation:

Loading of Pressure Vessels - Preparation & Element Loading (Form No. 45-D01602-en)
System Operation, including plant Start-Up Sequence (Form No. 45-D01609-en) and RO & NF Systems Shutdown (Form No. 45-D01613-en)
Handling, Preservation, and Storage (Form No. 45-D03716-en)

Full information of plant design, system operation and troubleshooting is given in the FilmTec™ Reverse Osmosis Membranes Technical Manual (Form No. 45-D01504-en).

Regulatory Note

This product may be subject to drinking water application restrictions in some countries; please check the application status before use and sale.

Version: Form No. 45-D00971-en, Rev. 6, November 2022
