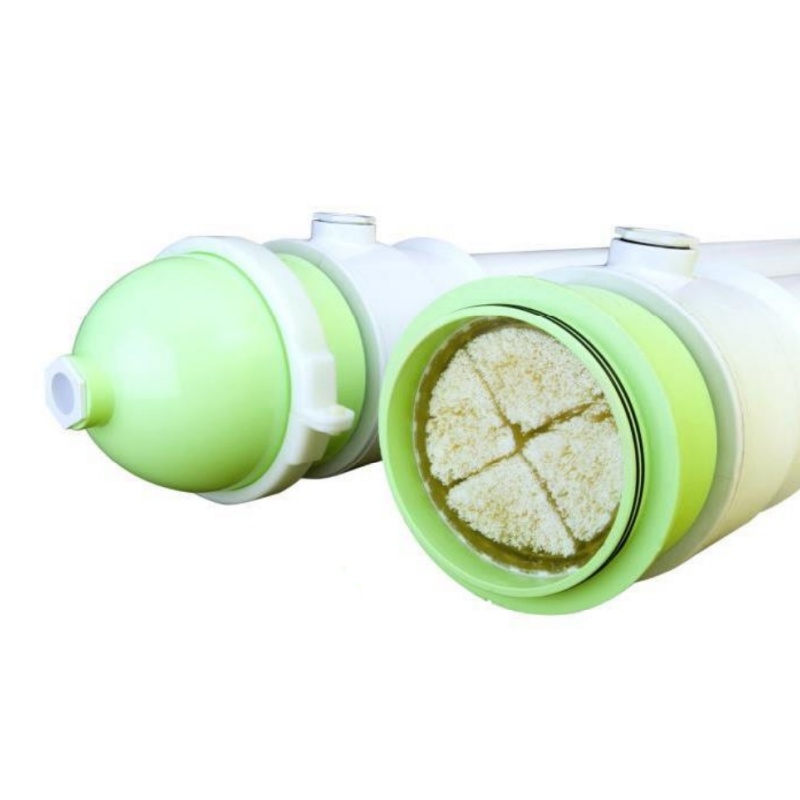

Hyflux KRISTAL 600ET Module

Product No.：K600ET
Online Inquiry

General Inforamtion

Hyflux KRISTAL 600ET module is asymmetric structure, using modified polyethersulfone as base material to deliver consistent, high quality product water.

Hyflux KRISTAL 600ET Module Product Data Sheet

Membrane Specifications

Feature	UOM	Specifications
Structure	-	Asymmetric
Base Material	-	Modified Polyethersulfone
Nature	-	Hydrophilic
Molecular Weight Cut-Off (MWCO)	Dalton	120,000
Outer Diameter	mm/ inch	1.35/ 0.053
Inner Diameter	mm/ inch	0.7/ 0.027
Wall Thickness	mm/ inch	0.325/ 0.012
Tensile Strength	MPa	> 3
Bacteria Log Reduction Value (LRV)	-	> 6*

*Verified by accredited third party laboratory

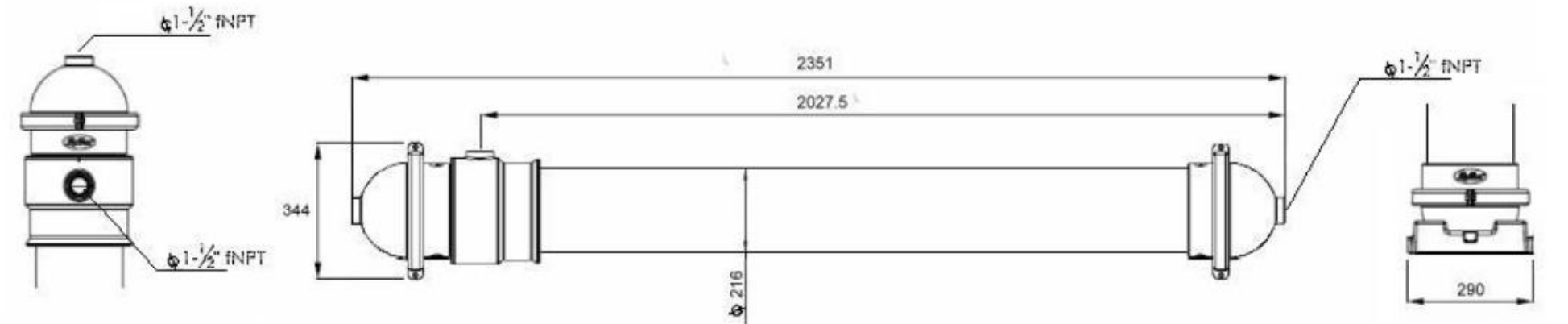

Module Specifications

Feature	UOM	Specifications
Dimensions (Diameter × Length)	mm/ inch	216×2000/ 8×80 (Nominal)
Membrane Area	m²/ ft²	60/ 645 (Nominal)
Pure Water Flux	LMH/ GFD	170/ 100
Component Material - Housing	-	PVC
Component Material - End Caps	-	PVC
Component Material - Sealant	-	Proprietary composite potting materials
Connection - Feed Inlet	inch	1.5NPT
Connection - Permeate Outlet	inch	1.5NPT
Connection - Reject Outlet	inch	1.5NPT
Shipping Weight	kg/ lbs	60/ 132
Operating Weight	kg/ lbs	100/ 220

NSF-61 certified

Operating Parameters

Flow Type	Outside-In
Max Feed Pressure	2.5 bar
Max Backwash Pressure	2.0 bar
Max Transmembrane Pressure	2.0 bar
Service Transmembrane Pressure	0.2 - 1.5 bar
Temperature Range	5 - 40℃
Operating pH	2 - 10
Cleaning pH	2 - 11

Handling and Storage Conditions

Avoid direct sunlight and ultraviolet light
Avoid the following solvents and chemicals:

– Do not allow the Kristal module to come into contact with aromatic solvents or chlorinated aromatic substances.

– Avoid contact with surfactants or disinfectants that contain chlorinated aromatic solvents.

Protect from drying.

The Kristal module’s membranes must be kept wet at all times. If the membranes come into contact with air when the water or preservative solution is drained from the module, the membranes will dry out and lose their filtration capability.

Protect from freezing, impact and shock.
When installing Kristal modules:

– Modules should be installed vertically with the feed inlet at the bottom and the permeate and reject outlets at the top.

– Take care when securing the modules in place as excessive force may crack the module case.

– Pay attention to piping, gravity and thermal stress on the modules.

Storage

– New Kristal modules should be kept in the original packaging before usage.

– Store the modules at a temperature of between 5°C to 40°C (41°F to 113°F).

Cleaning before first use

New Kristal modules are protected by glycerin solution. Before first use, the modules must be flushed with a solution of sodium hypochlorite and sodium hydroxide to remove the glycerin. The recommended solution for flushing is NaClO (100 ppm) + NaOH (pH 10). Flush with the chemical cleaning solution for 15 to 20 minutes and then flush with clean water for 5 minutes.
