Configuration:

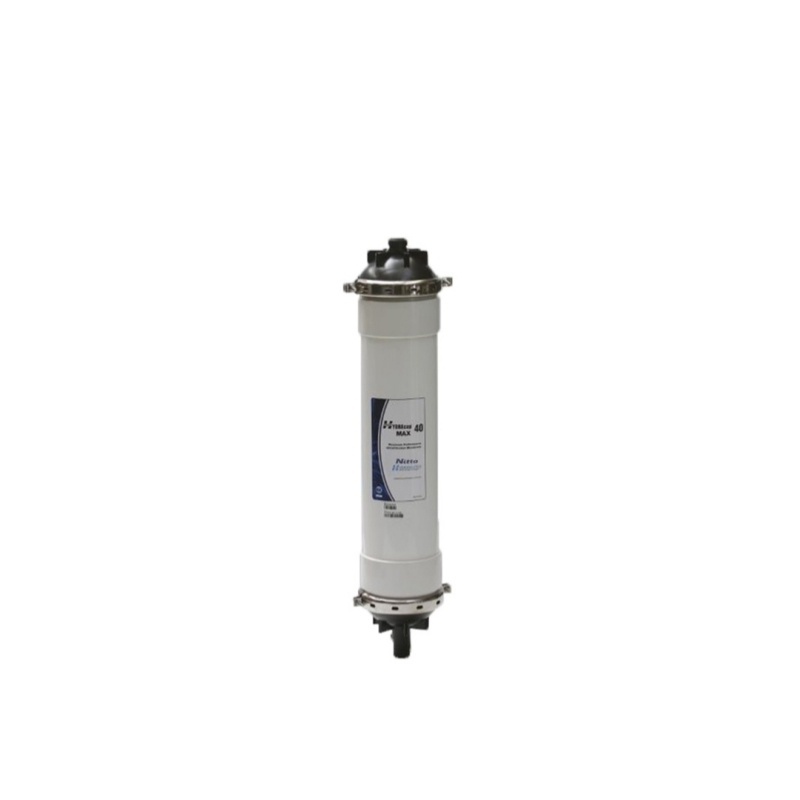

Capillary Ultrafiltration Module

Membrane Polymer:

PVDF

Nominal Membrane Area:

560 ft² (52 m²)

Fiber Dimensions:

ID 0.024” (0.6 mm), OD 0.047” (1.2 mm)

Pore size:

0.08 micron

Typical Filtrate Flux Range:

20 – 65 gfd (34 – 110 l/m²/h)

Maximum Applied Feed Pressure:

73 psig (5.0 bar)3

Maximum Transmembrane Pressure

30 psig (2.0 bar)

Instantaneous Chlorine Tolerance:

5000 ppm⁴

Maximum Chlorine Exposure:

750,000 ppm-hrs

Maximum Feed Turbidity:

300 NTU⁵

Maximum Operating Temperature:

104 °F (40 °C)

pH Operating Range:

4.0 – 10.0

Cleaning pH Range:

1.0 – 13.0

Operating Mode:

Outside to Inside Filtration
Dead End or Cross flow mode

Air Scour Rate:

7.3 - 9.1 acfm (12.3 - 15.4 m³/h)

Air Scour Duration:

120 - 240 seconds

Air Scour Frequency:

Once every 20 - 60 minutes

Maintenance Clean Frequency:

1 - 3 times per day

Maintenance Clean Duration:

20 - 30 minutes

Disinfection Chemicals:

NaOCl, ClO₂ or NH₂Cl

Cleaning Chemicals:

NaOH, HCl, H₂SO₄, or Citric Acid

A, inches (mm)

B, inches (mm)

C, inches (mm)

Pipe connections

Dry Weight

Wet Weight

53.74 (1364.9)

44.70 (1135.5)

49.50 (1257.3)

2” Victaulic

90 lbs (41 kg)

161 lbs (73 kg)
