X-Flow R-30 Microfiltration membrane

Product No.：R-30
Online Inquiry

Pentair X-Flow R-30 Microfiltration Membrane

PRODUCT CODE: 4842RB452A

General Information

X-Flow's R-30 is a microfilter liner used to clarify beer. The liner operates in cross-flow mode and requires regular backwashing and SIP cleaning in accordance with the schedule established by the system supplier.

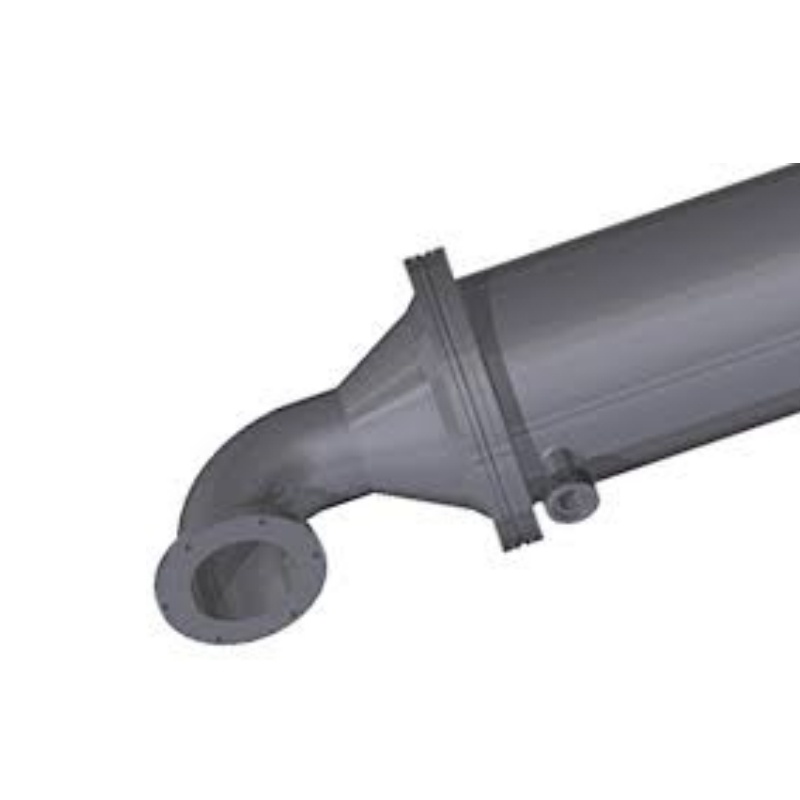

The module is available in the form of an insert, its stainless steel housing is part of the BMF membrane filtration system for beer. When installing a module, you must follow the instructions compiled by the supplier.
Pentair X-Flow R-30 Microfiltration Membrane Product Data Sheet

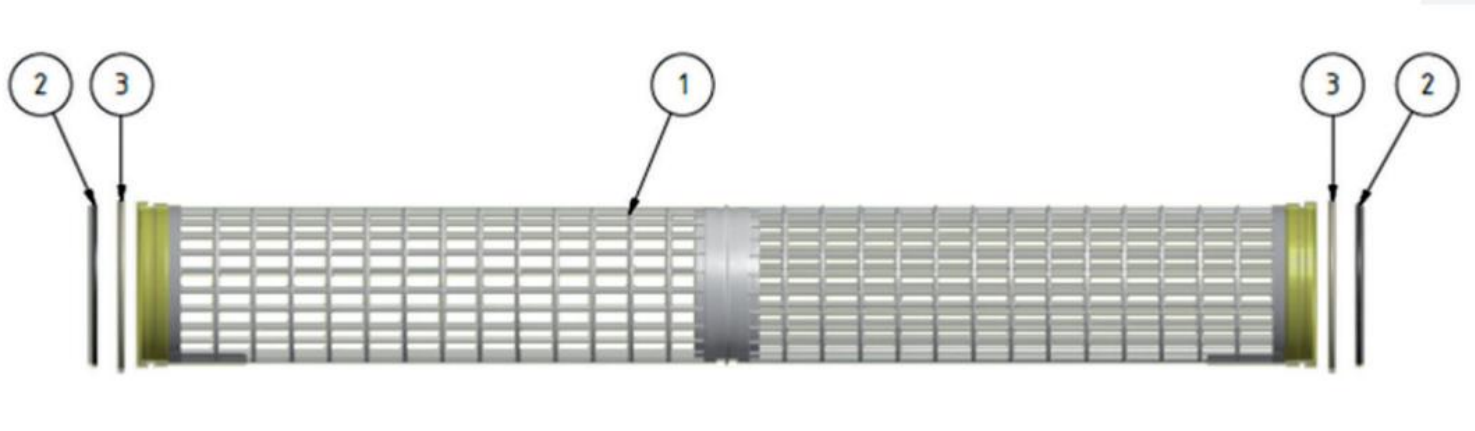

Materials

1.Article number 4842RB452A: R-30 module: intermediate insert and intermediate insert connection polypropylene/ polyethylene; pouring structural polymer; filling ring: polyethersulfone; polyethersulfone/polyvinylpyrrolidone membrane, quantity 1
2. Article number 32032: O-ring 190x8 mm, concentrate side: ethylene propylene rubber, black, quantity
3. Article number 32048: ring seal 200x8 mm, permeate side: EPDM, white, quantity 2

Characteristics of Membranes

X-Flow BV product code: 1.5 MF05XL M2
Hydrophilic membrane consisting of a mixture of polyvinylpyrrolidone and polyethersulfone
Asymmetrical/microporous structure
High throughput and properties, preventing membrane clogging

Module Specifications

Type module	Diaphragm diameter [1] [mm]	Membrane area [1] [m²]
R-30	1.5	27

[1] Nominal
Membrane liner dry weight: approx. 8 kg
Total length of membrane liner: about 1.5 m
Diameter of membrane liner: about 209 mm
Pentair X-Flow R-30 Microfiltration Membrane Dimension

Pentair X-Flow R-30 Microfiltration Membrane Dimension

Storage

Dry membrane modules should be stored in a dry, well-ventilated area, away from sources of heat and ignition and direct sunlight. Modules are stored at temperatures between 0 and 40℃ and relative humidity ÿ80% in their original packaging.

Performance Characteristics

Max. System pressure

Max. transmembrane pressure

Max. backwash pressure

Max. operating temperature

[kPa]

[℃]

Specified by the system vendor

0 - 30℃

30 - 60℃

60 - 80℃

300

200

100

0 - 30℃

30 - 60℃

60 - 80℃

200

150

100

80 [1]

[1] This temperature may affect the service life guaranteed by the supplier

The quality of cleaning solutions should meet permeate quality or higher
Washing system pumps must be made from non-corrosive materials
To avoid mechanical damage, do not expose the membrane module or element to sudden temperature changes. Do not exeed the temperature threshold specified by the installation manufacturer. During heating or coolong, do not exceed the maximum speed of 3℃/min. When the system temperature is above 35℃. Failure to do so may result in irreparable damage.
To avoid mechanical damage or leaks, never alliw water hammer to occur in the system.

Detergent Resistance

Operating membrane modules at any combination of the maximum pH, chemical concentrations, pressure or temperature specified in the documents provided by the installation supplier, during cleaning or during production, may affect the membranes and/or module life.

Launch

Before starting beer filtration, new membranes must be washed through a full CIP washing cycle
In any case, the use of grease or oil based lubricants should be avoided.

Certificates

USA: Complies with 21 Code of Federal Regulations by the Food and Drug Administration
Europe: equipment has been tested and found to comply with the requirements of EEC EC 1935/2004 and EU 10/2011 (pending)
