STERAPORE 56E0040SA MBR Membrane Element

Product No.：56E0040SA
Online Inquiry

General Information

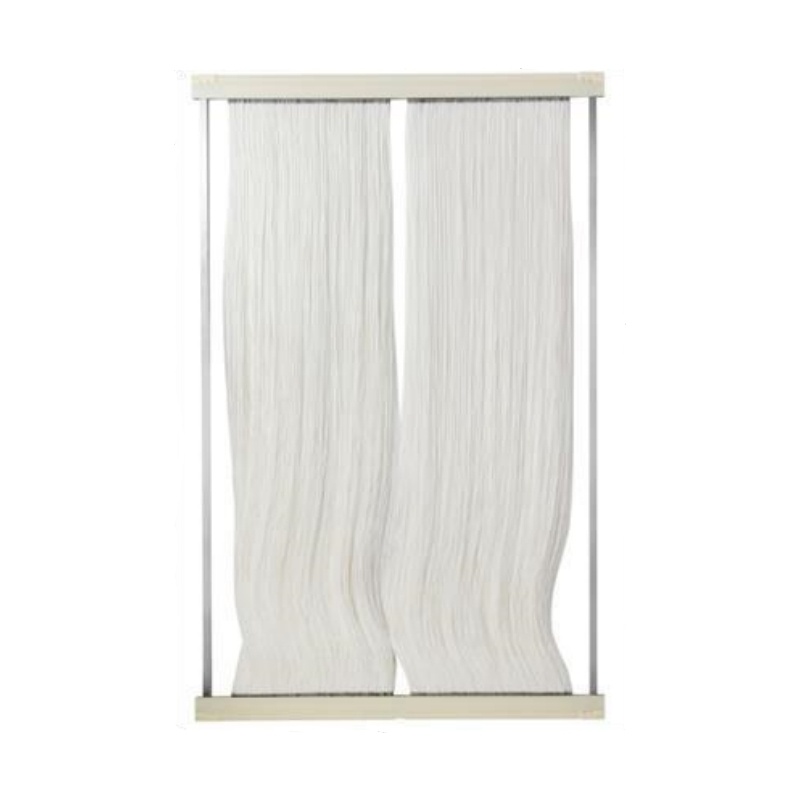

Mitsubishi STERAPORE 5600 Series (FF) hollow fiber membrane modules 56E0040SA are submerged membrane modules used for MBR wastewater treatment.
Mitsubishi STERAPORE 56E0040SA MBR Membrane Product Data Sheet

Advantage

Easy transport and storage under dry conditions
High packing denstity
Independent control of HRT (hydraulic retention time) and SRT (solids retention time)
High quality effluent
Small footprint
Improved bio-treatment
MBR OPEX

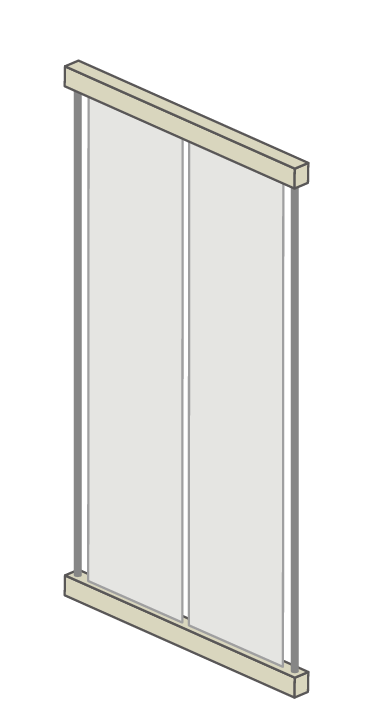

Dimension

Type	Diameter	Width	Height
56E0040SA	30 mm	1,250 mm	2,000 mm

Element Specifications

Product specifications for membrane elements are given below.
Specifications indicated in this manual may be subject to change without notice.

Item		Unit	Specifications
Element model number		－	56E0040SA
Nominal membrane surface area		M²	40
Direction of hollow fiber membrane		－	Vertical
Material	Hollow fiber membrane	－	PVDF (polyvinylidene fluoride)
	Potting resin	－	Polyurethane resin
	Reinforcing resin	－	Polyurethane resin
	Water collection pipe	－	ABS Resin
	Support pipe	－	SUS304
Nominal pore size		μm	0.05
Outer diameter of hollow fiber membrane		mm	1.65
Element dimensions (D×W×H)		mm	30 × 1,250 × 2,000
Dry weight		kg	Approx. 15
Connection		mm	φ24 × 2 locations Upper element permeate header/lateral
Operating conditions	Design filtration flow*	m³/(day・element)	5 to 20
	Filtration mode	－	Submerged suction filtration (out-in filtration)
	Normal trans membrane pressure	－	Initial trans membrane pressure: -15 kPa or above
	Normal temperature	℃	5 to 40
	pH range of raw water	－	5 to 9
	Oil content range of raw water	－	Normal hexane extracts 150 mg/L or below (excluding mineral oils)
	pH range for cleaning	－	1 to 11
	MLSS range (Membrane Tank)	mg/L	Recommended range of application: 5,000 to 10,000 (min: 3,000, max: 15,000)
	Other		Silicon antifoaming agents may not be used.

* Design filtration flow is calculated based on the assumption that flux is between 0.2 and 0.8 m³/(m²•d). It differs according to the raw water conditions, operating temperature, etc.

Module specifications

Item			Unit	Specifications
Module model number			－	56M0400FF	56M0800FF	56M1200FF	56M1600FF	56M2400FF
Element	Model no.		－	56E0040SA
	No. of elements		pcs.	10	20	30	40	60
	Dimensions (D×W×H)		Mm	30 × 1,250 × 2,000
	Nominal membrane surface area		m²	40
Module	Module membrane surface area		m²	400	800	1200	1600	2400
	Dimensions	Depth	Mm	1,524	1,524	1,524	1,524	1,524
		Width	Mm	940	1,390	1,870	2,320	3,416
		Height	Mm	2,798	2,798	2,798	2,798	2,798
	Weight	Dry	Kg	400	600	800	1,000	1,550
	Weight	Lifting^＊1	Kg	500 to 1,000	800 to 1,800	1,100 to 2,600	1,400 to 3,400	2,100 to 5,100
		No. of permeate adapters required	Pairs	20	40	60	80	120
		Connection to treated water (JIS10K)	－	65A Flange × 2	65A Flange × 2	65A Flange × 2	65A Flange × 2	65A Flange × 4
		Guide pipe specifications	－	50A	50A	80A	80A	80A
Diffuser part	Diffuser	Model number	－	FB-10W	FB-20W	FB-30W	FB-40W	FB-60W
Diffuser part	Connection (JIS10K)			80A Flange	80A Flange	80A Flange	80A Flange	80A Flange× 2
Diffuser air	Minimum aeration rate		Nm³/min	0.8	1.5	2.2	2.9	4.4
	Maximum aeration rate		Nm³/min	1.7	3.1	4.5	5.9	9.0
	Standard aeration rate		Nm³/min	1.5	2.7	3.8	5.0	7.7
	Diffuser pressure loss (Maximum)		kPa	1.1	1.1	1.1	1.1	1.1
Minimum water depth			m	3.0	3.0	3.0	3.0	3.0
Standard center-to-center distance for modules		Depthwise		2.2 m or greater (The wall-to-c enter distance for modules adjacent to walls must be 1.1 m or greater.)
Standard center-to-center distance for modules		Widthwise		Secure a sufficient distance for tying in pipes or lifting the module.
Operating conditions	Filtration mode		－	Submerged suction filtration (out-in filtration)
	Normal trans membrane pressure		－	Initial trans membrane pressure: -15 kPa or above
	Normal temperature		℃	5 to 40
	pH range of raw water		－	5 to 9
	Oil content range of raw water		－	Normal hexane extracts 150 mg/L or below (excluding mineral oils)
	pH range for cleaning		－	1.0 to 11.0
	MLSS range (Membrane Tank)		mg/L	Recommended range of application: 5,000 to 10,000 (min: 3,000; max: 15,000)
	Design filtration flow^*2		m³/(day・module)	80 to 320	160 to 640	240 to 960	320 to 1,280	480 to 1,920
	Other		－	Silicon antifoaming agent may not be used.

＊1 Reference lifting weight when wet. The actual lifting weight differs according to the operating conditions and the amount of adhered sludge.
＊2 Design filtration flow is calculated based on the assumption that flux is between 0.2 and 0.8 m³/(m²•d). It differs according to the raw water conditions, operating temperature, etc.

Standard accessories

Water collection adapter (permeate adapter)

Accessories not included

Guide rail
Chains and shackles
Chain blocks and cranes
Slings and lifting beams
Filtered water hose and pipes, air hose and pipes
Protective sheets and covers

From 2nd Edition, July 2015

Notice:
If your customer insists existing brand, please contact Mitsubishi or it's distributors.
If your customer and you accept economical & quick-delivery equivalent of similar or better performance with same warranty, kindly send us an inquiry now.

Previous Product：STERAPORE 50E0025SA
