  • Toray TM720D-440

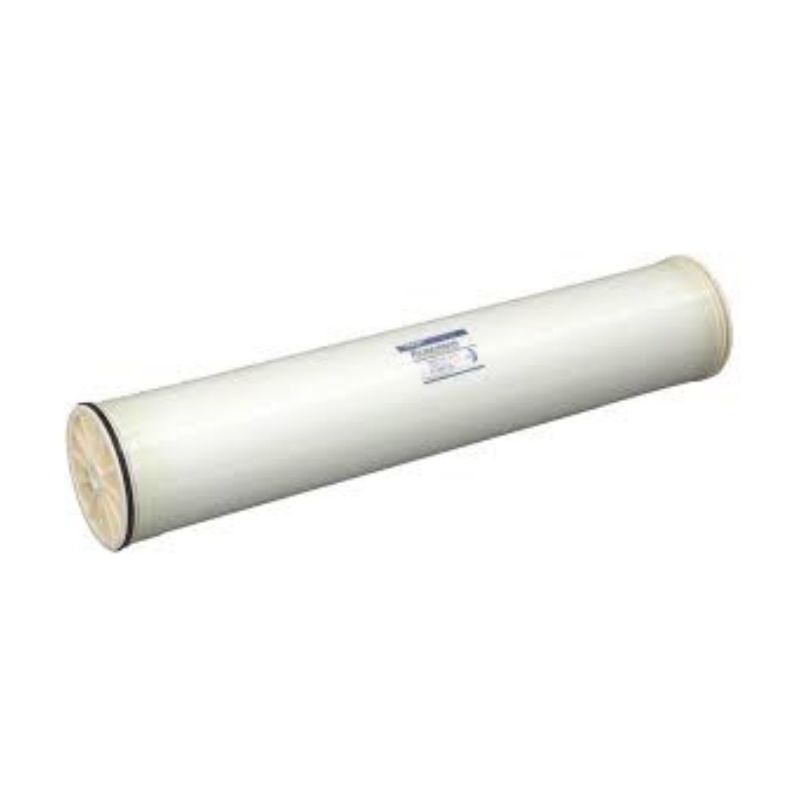

Toray TM720D-440

Toray TM720D-440

Generation Information

Toray TMG720D-440 Brackish Water RO Membrane is a low-pressure brackish water reverse osmosis (RO) membrane element with enhanced chemical tolerance.
Toray RO membrane TMG720D-440 applied state-of-the-art cross-linked fully aromatic polyamide composite membranes for improved performance and longer membrane life.

Toray TMG720D-440 Brackish Water RO Membrane Product Data Sheet

Type

Diameter

Inch

Membrane Area
ft2(m2)

Salte Rejection
%

Product Flow Rate gpd
(m3/d)

Feed Spacer Thickness
mil

TMG720D-440

8’’

440 (41)

99.8

12,100 (45.8)

28


1. Membrane Type



Cross Linked Fully Aromatic Polyamide Composite

2. Test Conditions

Feed Water Pressure

Feed Water Temperature

Feed Water Concentration

Recovery Rate

Feed Water pH

225 psi (1.55 MPa)

77℉ (25℃)

2,000 mg/l NaCl

15%

7

3. Minimum Salt Rejection



99.65%

4. Minimum Product Flow Rate



9,800 gpd (37.0 m3/d)

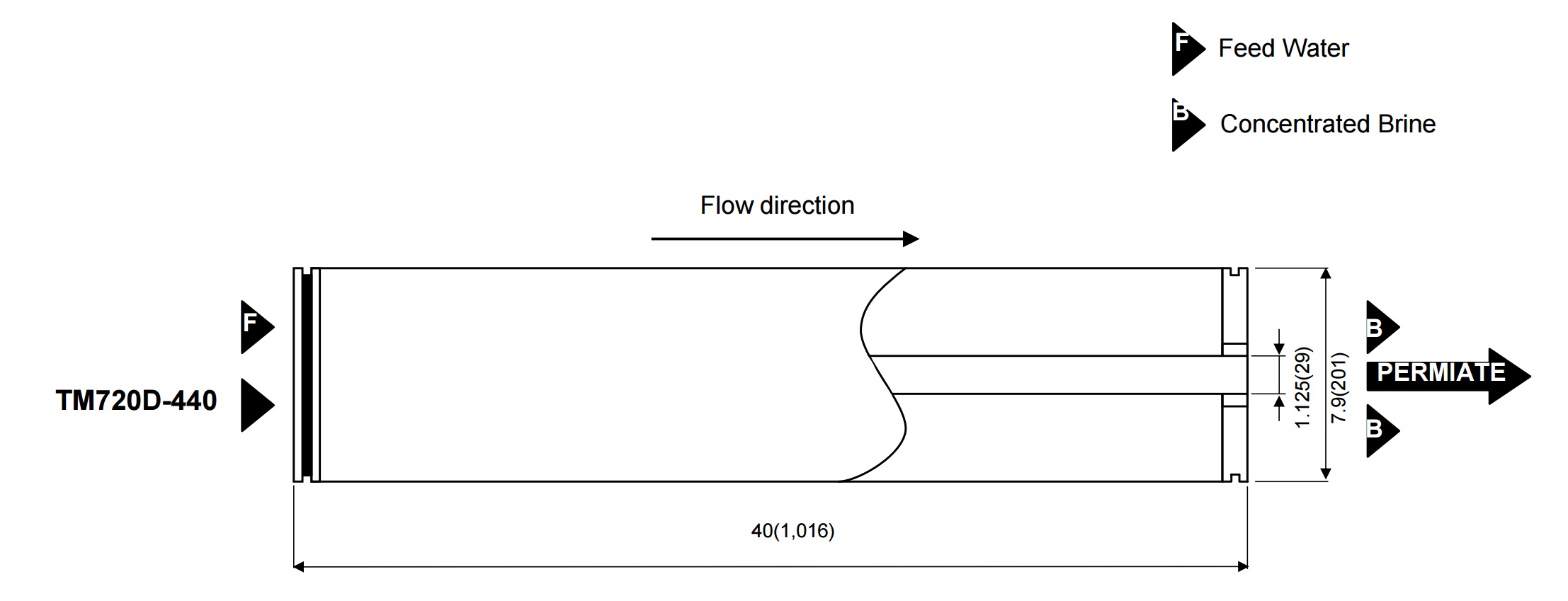

Dimensions

All dimensions are shown in inches (millimeter).
Toray TMG720D-440 Brackish Water RO Membrane Dimension
Operating Limits

Maximum Operating Pressure

600 psi (4.1 MPa)

Maximum Feed Water Temperature

113°F (45℃)

Maximum Feed Water SDI15

5

Feed Water Chlorine Concentration

< 0.1 ppm

Feed Water pH Range, Continuous Operation

2 - 11

Feed Water pH Range, Chemical Cleaning

1 - 13

Maximum Pressure Drop per Element

20 psi (0.14 MPa)

Maximum Pressure Drop per Vessel

60 psi (0.4 MPa)

Operating Information

1.For the recommended design range, please consult the latest Toray technical bulletin, design guide lines, computer design program, and/ or call an application specialist. If the operating limits given in this Product Information Bulletin are not strictly followed, the Limited Warranty will be null and void.

2.All elements are wet tested, treated with a 1% by weight percent sodium bisulfite storage solution, and then vacuum packed in oxygen barrier bags, or treated with tested feed water solution, and then vacuum packed in oxygen barrier bags with deoxidant inside. To prevent biological growth during short term storage, shipment, or system shutdown, it is recommended that Toray elements be immersed in a protective solution containing 500 - 1,000 ppm of sodium bisulfite (food grade) dissolved in permeate.

3.The presence of free chlorine and other oxidizing agents under certain conditions, such as heavy metals which acts as oxidation catalyst in the feed water will cause unexpected oxidation of the membrane. Since oxidation damage is not covered under warranty, it is strongly recommended to remove these oxidizing agents contained in feed water before operating RO system. Please refer to Toray RO Element Three-Year Prorated Limited Warranty.

4.Permeate from the first hour of operation shall be discarded.

5.The customer is fully responsible for the effects of chemicals that are incompatible with the elements.

Their use will void the element Limited Warranty.

1. Toray accepts no responsibility for results obtained by the applications of this information or the safety or suitability of Toray's products, either alone or in combination with other products. Users are advised to make their own tests to determine the safety and sustainbility of each product combination for their own purposes.
2. All data may change without prior notice, due to technical modifications or production changes.

Notice:
If your customer insists existing brand, please contact Toray or its distributors.
If you and your customer accept economical & quick-delivery equivalent of similar or better performance with same warranty, kindly send us an inquiry now.
