DuPont Inge dizzer XL 0.9 MB 36 WR

Product No.：dizzer XL 0.9 MB 36 WR
Online Inquiry

General Information

DuPont Inge dizzer XL 0.9 MB 36 WR Ultrafiltration Module is a high-performance water treatment solution designed for various applications, including drinking water production, industrial processes, and reverse osmosis (RO) pretreatment. Featuring Inge's patented Multibore membrane technology, this module ensures consistent and reliable filtration performance.

Features

Excellent effciency and high output
Easy installation, plug-and-play operation
Compact design
Low operating costs

Module Dimensions

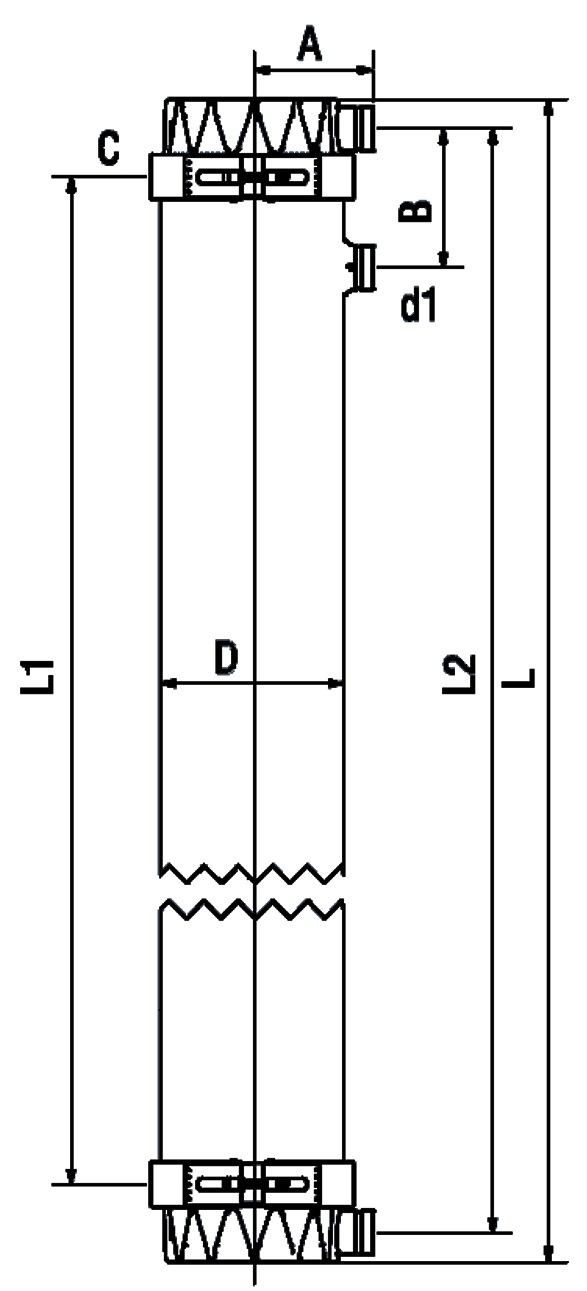

DuPont Inge dizzer XL 0.9 MB 36 WR Dimension

Module reference		dizzer^® XL 0.9 MB 36 WR
Part number		VK-0090
Membrane area	m² / ft²	36 / 390
Length with end cap (L)	Mm (inch)	1180±3 (46 1/2)
Length without end cap (L1)	Mm (inch)	986±1.5 (38 3/4)
Distance feed connectors (L2)	Mm (inch)	1100±3 (43 1/2)
Distance feed - module center axis (A)	Mm (inch)	180 (7 1/16)
Distance feed - module center axis (B)	Mm (inch)	190±1.5 (7 1/2)
Outer diameter end cap coupling max. (C)	Mm (inch)	295 (11 5/8)
Outer diameter module (D)	Mm (inch)	250 (9 7/8)
Connector flexible victaulic (d1)	inch	2
Weight* (wet)	Kg / lbs.	40 / 90

Membrane Data

Membrane data
Capillaries per fibre		7
Inner diameter	mm	0.9
Outer diameter	mm	4.0
Pore size	µm	approx. 0.02
Material		PESM

Cleaning/disinfection chemicals		Multibore® 0.9 membrane
Free chlorine	ppm ppm x h	max. 200 max. 200,000 (at pH ≥ 9.5)
H₂O₂ (Hydrogenperoxide)	ppm	max. 500
Caustic Soda pH		max. 13
Acid pH		min. 1
Flux rate
Filtration*	l/(m²h) gfd	60 – 180 / 35 – 105
Backwash standard	l/(m²h) gfd	230 / 135
Backwash range	l/(m²h) gfd	230 – 300 / 135 – 175
Transmembrane pressure (TMP)
Filtration*	bar (psi)	0.1 – 1.5 (1.5 – 20)
Backwash standard*	bar (psi)	0.3 – 3.0 (5 – 40)
Burst pressure membrane	bar (psi)	> 10 (> 150)

* Specifications apply to common operating conditions.

Module Data

Material
Housing		PVC-U, white
End cap		PVC-U, grey
End cap coupling		SS (sealing EPDM)
Operation parameters
Pressure max.	bar (psi)	5 (70)
Temperature range	°C (°F)	1 – 40 (34 – 104)

Subject to technical modifications and errors. Modules are to be operated in accordance with the inge® Operator´s Manual. Customized configurations are available on request. Please contact the inge GmbH team if you require any further information.

From Technical Specification dizzer XL - 5000 - 3000 1(2013-06) E inge.
