ZW700B-9060/UF10/7B/XA/0.8/55

Product No.：ZW700B-9060
Online Inquiry

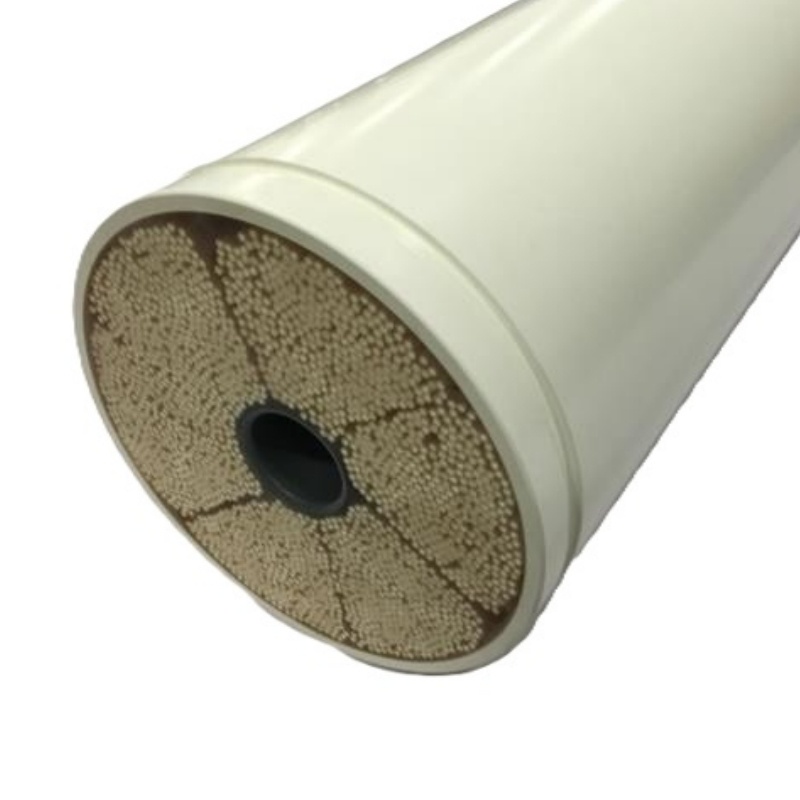

ZeeWeed ultrafiltration (UF)
model: ZW700B-9060
Full model name: ZW700B-9060/UF10/7B/XA/0.8/55

As a pioneer of membrane technology, Suez leverages decades of research, development, and operational experience to offer the most advanced ultrafiltration technology in the market.
The ZeeWeed 700B-9060 line of products contains our SevenBore fiber technology with an inside-out flow orientation. The SevenBore fiber is regarded as the most robust polyether sulfone (PES) product on the market.
Veolia Suez ZeeWeed 700B-9060 Product Data Sheet

product specifications element data

Description	ZW700B-10060/UF8/7B/S/0.9/60
Material housing	PVC

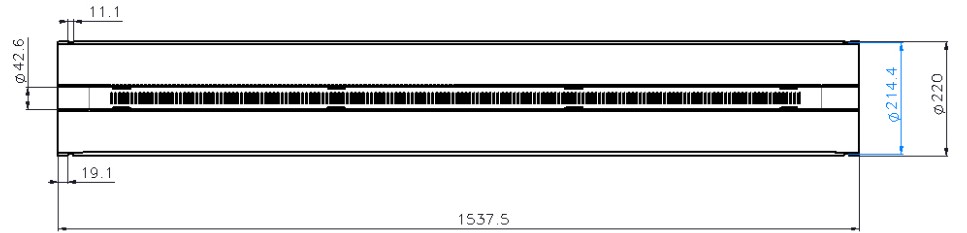

Housing length	1537.5 +/- 1.0 mm (60.5 +/- 0.04 inch)
Permeate connector ID	42.6 +/- 0.5 mm (1.7 +/- 0.02 inch)
Element OD	220 mm (8.66 inch)
Weight	24 kg (53 lbs)

typical process conditions

Description	Measurement
Maximum operating temperature	40℃ (104℉)
Max. Operating Pressure, installed vertically with end-caps	5 bars (72.5 psi)
Max. Operating Pressure, installed horizontally in housing	See specifications of membrane housing supplier
Typical TransMembrane Pressure (TMP), typ operation	＜ 1.0 bar (14.5 psi)
TMP maximum	2.5 bar (36 psi)
Backwash/forward flush maximum	250 l/m²h (150 gfd)
pH range during operation	2 to 11

membrane type

Description	Measurement
Material	Modified PES
Type	SevenBore
Diameter bores ID	0.8 mm (0.03 inch)
Area	55 m²(592 ft²)

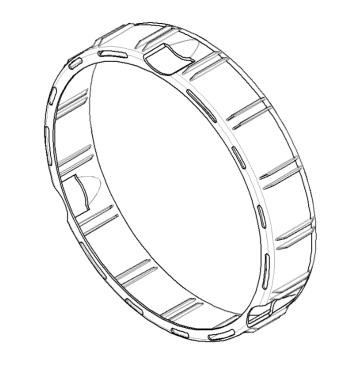

Figure: ZW700B-9060 Spacer Ring

cleaning

Description	Measurement
Cleaning pH range	1.0-13.0
Disinfecting Chemicals: Hypochlorite (NaOCI) Hydrogen peroxide	50 to 200 ppm 100 to 200 ppm

general properties

• UF membrane - for optimal removal of particulates, bacteria, and viruses
• PES membrane fibers with 7 bores - provides high mechanical strength (>10x that of single fibers) and chemical resistance
• Inside-Out filtration – eliminates air scouring step and additional related equipment
• Modules can be mounted vertically, or installed horizontally in pressure vessels. If used in horizontally orientation, two spacer rings per module are required, along with any pemeat interconnectors
• Contact SUEZ for detailed drawings and assistance with sizing and ordering element housings

storage and handling

All elements are filled with glycerin when new, which is part of the fiber manufacturing and preservation process. Elements must be stored in a dry and normal ventilated location, away from any sources of heat, ignition, and direct sunlight in the original packing. The storage temperature must be between 5°C and 35°C (45°F to 91°F).

From FSufZW700B-9060_Standard_EN

Notice:
If your customer insists existing brand, please contact Veolia or its distributors.
If you and your customer accept economical & quick-delivery equivalent of similar or better performance with same warranty, kindly send us an inquiry now.
