Products >> Hollow Fiber MBR Module >> Mitsubishi MBR Membrane Element

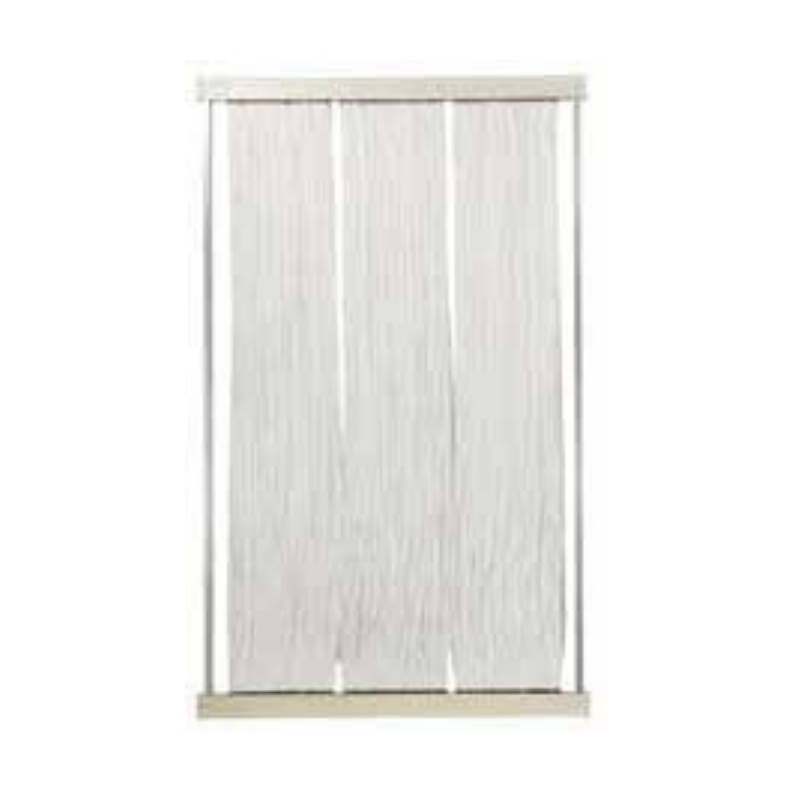

STERAPORE 50E0025SA

Product No.：50E0025SA
Online Inquiry

General Information

Mitsubishi STERAPORE 5000 Series (FF) hollow fiber membrane modules 50E0025SA offer high permeability, excellent chemical resistance, strong hollow fiber membranes, and easy maintenace. In addition, it is now adoptable with wastewater
treatment facilities of all sizes (from several tens of m3/day to several hundreds of thousands of m3/day).
Mitsubishi STERAPORE 50E0025SA MBR Membrane Product Data Sheet

Features

High permeability
Our high-flux PVDF hollow-fiber membrane delivers high permeability.
Excellent chemical resistance
The membrane elements utilize PVDF resin, enabling long-term usage thanks to high chemical resistance and low chemical degradation.
Strong hollow fiber membranes
High mechanical strength results in a structure with low membrane failure, making it difficult for pollutants (such as SS) to escape into treated water.
Easy maintenance
The use of PVDF resin, which has excellent chemical resistance, achieves a cleasing effect adequate for maintenance cleaning and recovery cleaning.

Standard Element Specifications

Model No		50E0025SA
Nominal pore size (μm)		0.4
Membrane external diameter (mm)		2.8
Element dimensions (mm)		2,000×1,250×30
Dry weight (kg)		15
Effective membrane area (m²)		25
Material	Hollow-fiber membrane	PVDF
	Permeate	ABS resin
	Seal material	Polyurethane resin
	Supports	SUS304
Regular differential pressure		Initial differential pressure +15 kPa or less
Minimum applicable water depth (m)		3.5
Regular use temperature (℃)		0-40 (no freezing, no condensation)

Standard Module specifications

Model No	50M0048SS	50M0300SP	50M0500SP
Dimensions (D×W×H mm)	750×660×1,890	1,610×1,560×2,430	1,610×1,560×3,130
Number of elements	50E0006SM×8	50E0015SA×20	50E0025SA×20
Dry weight (kg)	About 120	About 700	About 850
Effective membrane area (m²)	48	300	500
Standard treatment volume (m³/day)*	10-35	60-240	100-400
Applicable water depth (m)	2	3	5
Header material	SUS304, ABS resin
Frame material	SUS304
Notes	Includes sealing sleeve-type aeration tube	Includes single tube-type aeration tube

*The actual value for standard treatment volume depends on the type of raw water, water temperature, facility operating policies, and other factors.not guaranteed values.

A part of module specifications can be customized. For more information, please contact us at e-mail address/phone#.

Notice:
If your customer insists existing brand, please contact Mitsubishi or it's distributors.
If your customer and you accept economical & quick-delivery equivalent of similar or better performance with same warranty, kindly send us an inquiry now.
