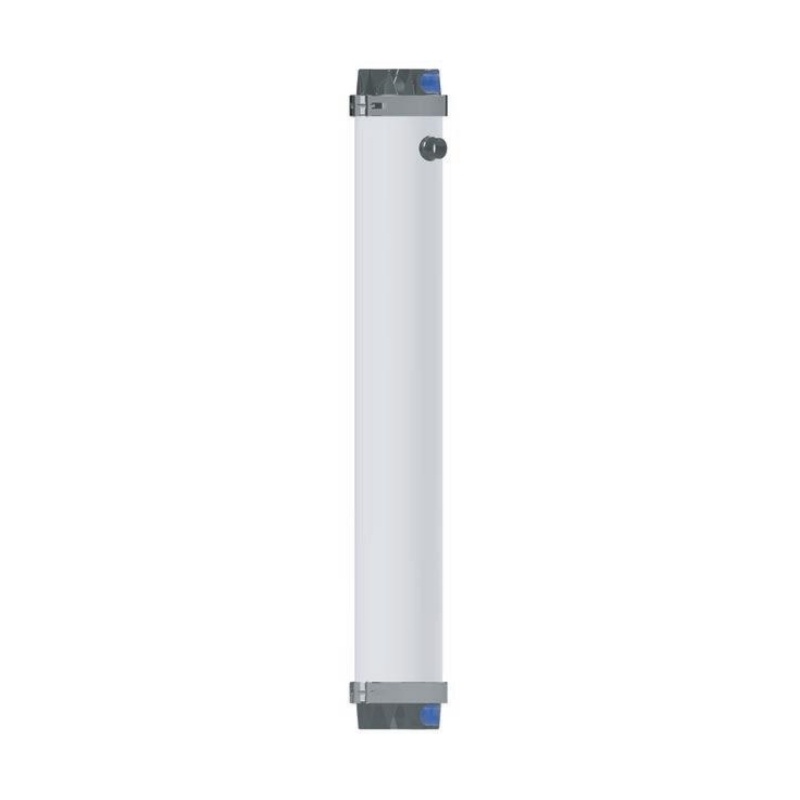

DuPont Inge dizzer XL 0.9 MB 60 W

Product No.：dizzer XL 0.9 MB 60 W (VK-0068)
Online Inquiry

General Information

DuPont Inge dizzer XL 0.9 MB 60 W is an ultrafiltration membrane with 7-bore fibers, which increases mechanical robustness and reduces fiber breakage, while providing uniform flow distribution.

Features

Open platform design for custom rack solutions
Superior cleaning efficiency
Highest filtrate output
Easy installation, plug-and-play operation
Low operating costs

Module Dimensions

DuPont Inge dizzer XL 0.9 MB 60 W (VK-0068) Dimension

Module reference		dizzer^® XL 0.9 MB 60 W
Part number		VK-0068
Membrane area	m² / ft²	60 / 645
Length with end cap (L)	Mm (inch)	1680±3 (66 1/8)
Length without end cap (L1)	Mm (inch)	1486±1.5 (58 1/2)
Distance feed connectors (L2)	Mm (inch)	1600±3 (63)
Distance feed - module center axis (A)	Mm (inch)	165 (6 1/2)
Distance feed - filtrate connector (B)	Mm (inch)	190±1.5 (7 1/2)
Outer diameter end cap coupling max. (C)	Mm (inch)	295 (11 5/8)
Outer diameter module (D)	Mm (inch)	250 (9 7/8)
Connector flexible victaulic (d1)	inch	2
Shipping Weight (wet)	Kg / lbs.	55 / 120

Membrane Data

Module construction
Housing material	PVC-U, white
End-cap material	PVC-U, grey
End-cap coupling material	SS (sealing EPDM)

Multibore® 0.9 membrane

Membrane data
Capillaries per fibre		7
Capillary inner diameter	mm	0.9
Pore size	µm	approx. 0.02
Material		PESM
Mode of operation		In-to-Out-filtration

Technical Information

Operating parameters			Multibore® 0.9
Max. operating pressure	bar	psi	5 72
Permissible temperature range	°C	°F	1 – 40 34 – 104
Flux rate
Filtration*	l/(m2 h)	gfd	60 – 180 35 – 105
Backwash standard	l/(m2 h)	gfd	230 135
Backwash range	l/(m2 h)	gfd	230 – 300 135 – 175
Transmembrane pressure (TMP)
Filtration	bar	psi	0.1 – 1.5 1.5 – 20
Backwash standard	bar	psi	0.3 – 3.0 5 – 40
Burst pressure membrane	bar	psi	> 12 > 174
Cleaning/disinfection chemicals
NaClO (sodium hypochlorite)	ppm	ppm x h	max. 500 max. 250,000 (at pH ≥ 9.5)
H₂O₂ (Hydrogenperoxide)	ppm		max. 500
Caustic Soda pH			max. 13
Acid pH			min. 1

* Typical operating conditions.

From Technical Specification dizzer XL MB 7(2017-02) E inge.
