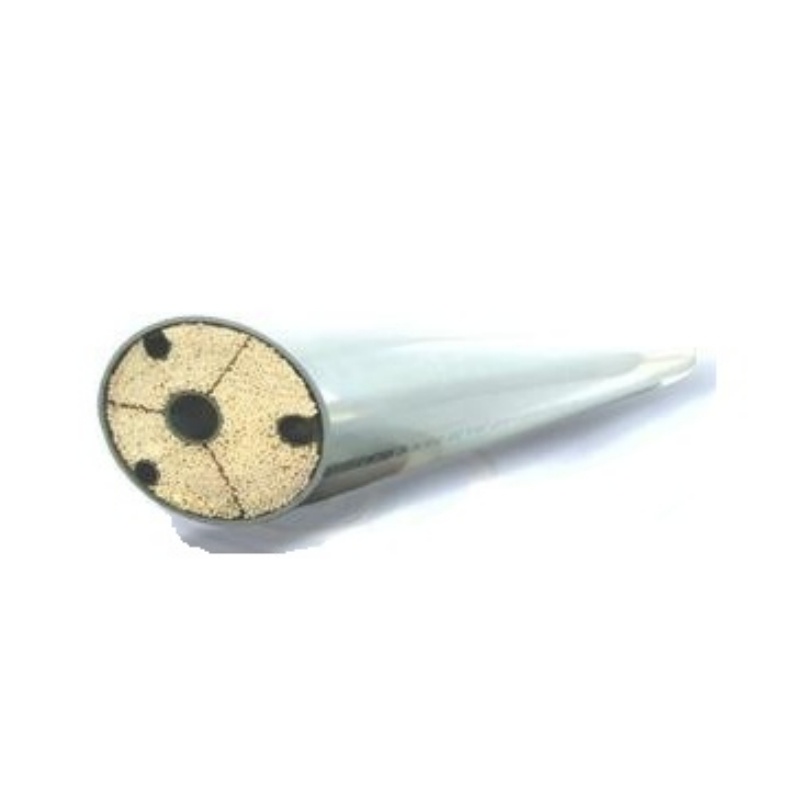

Veolia Suez ZW700B-8060/UF10/7B/X/0.8/40

Product No.：ZW700B-8060
Online Inquiry

ZeeWeed ultrafiltration (UF)
model: zw700b-8060, horizontal
full model name: zw800b-8060/uf10/7b/x/0.8/40

description and use

As a pioneer of membrane technology, Suez leverages decades of research, development, and operational experience to offer the most advanced ultrafiltration technology in the market.
The ZeeWeed 700B-8060 line of products contains our SevenBore fiber technology with an inside-out flow orientation. The SevenBore fiber is regarded as the most robust polyether sulfone (PES) product on the market.
Veolia Suez ZeeWeed 700B-8060 Product Data Sheet

product specifications element data

Description	ZW700B-8060/UF10/7B/X/0.8/40
Material housing	PVC
Housing length	1527 +/- 1.0 mm (60.12 +/- 0.04 inch)
Permeate connection ID	42.6 +/- 0.5 mm (1.68 +/- 0.02 inch)
Element OD	200 mm (7.87 inch)
Weight	319 kg (42 lbs)

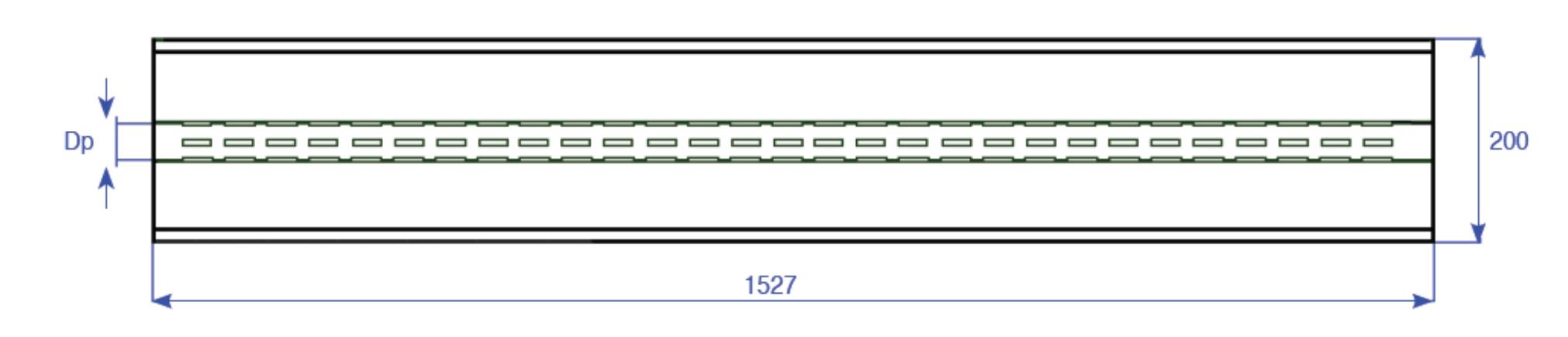

ZW700B-8060 Dimensions

Veolia Suez ZW700B-8060/UF10/7B/X/0.8/40 Dimension

typical process conditions

Description	Measurement
Maximum temperature	40℃ (104℉)
Maximum operating pressure	See specifications of membrane housing supplier
Typical Membrane Pressure (TMP), typ. operation	＜ 1.0 bar (＜ 14.5 psi)
TMP maximum	2.5 bar (36 psi)
Backwash/forward flush	250 l/m²h (150 gfd)
pH range during operation	2 to 11

membrane type

Description	Measurement
Material	PES
Type	SevenBore
Diameter bores ID	0.8 mm (0.03 inch)
Area	40 m²(431 ft²)

cleaning

Description	Measurement
Cleaning pH range	1.0-13.0
Disinfecting Chemicals: Hypochlorite (NaOCl) Hydrogen peroxide	50 to 200 ppm 100 to 200 ppm

general properties

• UF membrane - for optimal removal of particulates, bacteria, and viruses
• PES membrane fibers with 7 bores - provides high mechanical strength (>10x that of single fibers) and chemical resistance
• Inside-Out filtration – eliminates air scouring step and additional related equipment

storage and handling

All elements are filled with glycerin when new, which is part of the fiber manufacturing and preservation process. Elements must be stored in a dry and normal ventilated location, away from any sources of heat, ignition, and direct sunlight in the original packing. The storage temperature must be between 5°C and 35°C (45°F to 91°F).

From FSufZW700B-8060Horiz_EN
