Koch Kovalus ROMICON 0720212 HF VINEGAR 5043-66-43-PM50

Product No.：ROMICON HF VINEGAR 5043-66-43-PM50
Online Inquiry

ROMICON 0720212 HF, VINEGAR 5043-66-43-PM50
5" Diameter Hollow Fiber Ultrafiltration Cartridges for Vinegar Filtration

Product Description

Membrane Polymer:	Polysulfone
Housing Construction:	Polysulfone
Seal/Potting Material:	Proprietary Epoxy Compound
Storage Solution:	Glycerin
Options:
Lumen size:	43 mil (1.1 mm)
Membrane Type:	PM50

Product Specifications

Part Number	Model	Fiber Diameter mil (mm)	Membrane area ft²(m²)
0720212	HF,VINEGAR 5043-66-43-PM50	43 (1.1)	66 (6.1)

Operating and Design Information

Maximum Inlet Pressure:	40 psi (2.8 bar)
Maximum Transmembrane Pressure:	35 psi (2.4 bar)
Maximum Operating Temperature (at pH 6.0):	140°F (60°C)
Maximum Cleaning Temperature:	130°F (54°C)
Maximum Permeate Side Back Pressure:	20 psi (1.4 bar)
Maximum Differential Pressure Feed Side:	30 psi (2.1 bar)
Allowable pH:	1.5 – 13.0 @ 130°F (54°C)
Maximum Total Chlorine (During Cleaning):	200 ppm @ pH 10-10.5, 130°F (54°C) 0 ppm @ pH less than 9.5

Nominal Dimension

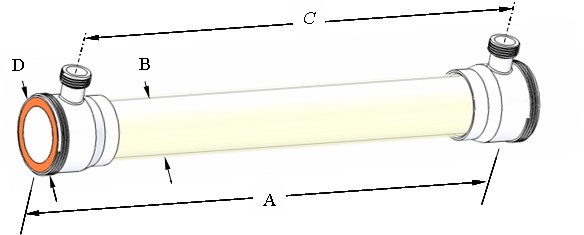

Koch Kovalus ROMICON 0720212 HF, VINEGAR 5043-66-43-PM50 UF Dimension

A		B		C		D		Permeate Connection	Process Connection
inches	mm	inches	mm	inches	mm	inches	mm	Permeate Connection	Process Connection
43	1092	5.0	127	38 ⅝	981	6.0	152	1 ½” NPSM	6” NPSM

Operating Guidelines

Membrane Characteristics:
ROMICON cartridges should be selected for filtration of liquids based on the separation range needed. They provide stable productivity, ease of cleaning and reliable operation. KSS ROMICON cartridges are crossflow-type filters, in which the feed solution is pumped across the cartridge to minimize solids cake buildup on the membrane. Crossflow filters provide efficient filtration at low operating pressure, allowing long process runs while reducing cleaning time, cleaning frequency, and labor costs.
KSS Capability
KSS is the leader in crossflow membrane technology, manufacturing reverse osmosis, nanofiltration, microfiltration, and ultrafiltration membranes and membrane systems. The industries served include food, dairy and beverage, pharmaceutical, biotechnology, water and wastewater, semiconductors, automotive, chemical and general manufacturing. KSS adds value by providing top quality membrane products and by sharing its experience in the design and supply of thousands of crossflow membrane systems worldwide.
Exposure to Chemical Oxidants:
While not recommended for use on a daily basis, exposure to chemical oxidants for thorough cleaning and sanitization may prove necessary and useful. Potassium metabisulfite (without catalyst such as cobalt) is the preferred chemical to eliminate residual chlorine or similar oxidizers prior to processing process liquid.
Service and Ongoing Technical Support
KSS has an experienced staff of professionals available to assist end-users and OEMs for optimization of existing systems and support the development of new applications. Along with the availability of supplemental technical bulletins, KSS also offers a complete line of cleaning chemicals.
Lubricants:
For cartridge installation, use only water or glycerin to lubricate seals. The use of petroleum or vegetable-based oils or solvents may damage the cartridge and will void the warranty.

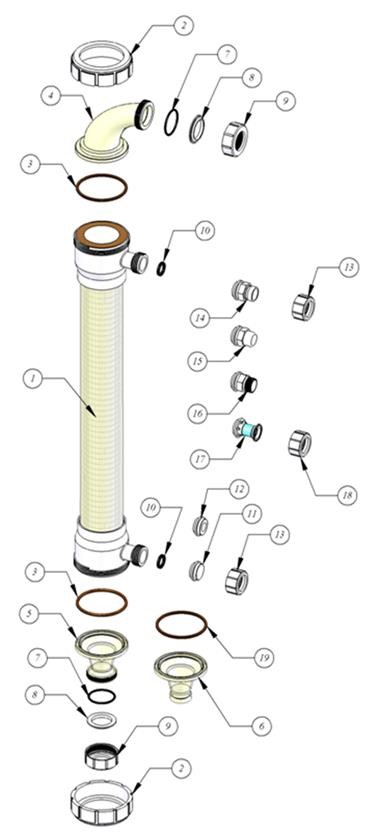

5” HOLLOW FIBER CARTRIDGE HARDWARE

Item	Description		KPN
1	5” HF Cartridge		072XXXX
2	Process Cap Nut		0040364
3	Cartridge Gasket	EPDM	0090443
		BUNA	0090444
4	Cartridge Reducing Elbow		0040365
5	Cartridge Straight Adapter (threaded)		0040376
6	Cartridge Straight Adapter (Victaulic)		0213000
7	Manifold Gasket	EPDM	0090439
		BUNA	0090432
8	Cartridge Backup Ring		0040368
9	Manifold Cap Nut		0040367
10	Permeate Port Gasket	EPDM	0090447
		BUNA	0090446
11	Permeate Plug		0040375
12	Permeate Adapter ¾“ NPTF		0040372
13	Permeate Cap Nut (for 14, 15, 16)		0040370
14	Permeate Adapter (Victaulic)		0213076
15	Permeate Adapter Plain		0213093
16	Permeate Adapter NPT		0213077
17	Permeate Adapter Sanitary		0211787
18	Permeate Cap Nut (for part 17)		0040377
19	Cartridge Seal		0211094

From Rev 23-1

Notice:
If your customer insists existing brand, please contact Koch or its distributors.
If you and your customer accept economical & quick-delivery equivalent of similar or better performance with same warranty, kindly send us an inquiry now.
