DuPont Inge dizzer L 0.9 MB 55 Horizontal

Product No.：dizzer L 0.9 MB 55 Horizontal (VK-1111)
Online Inquiry

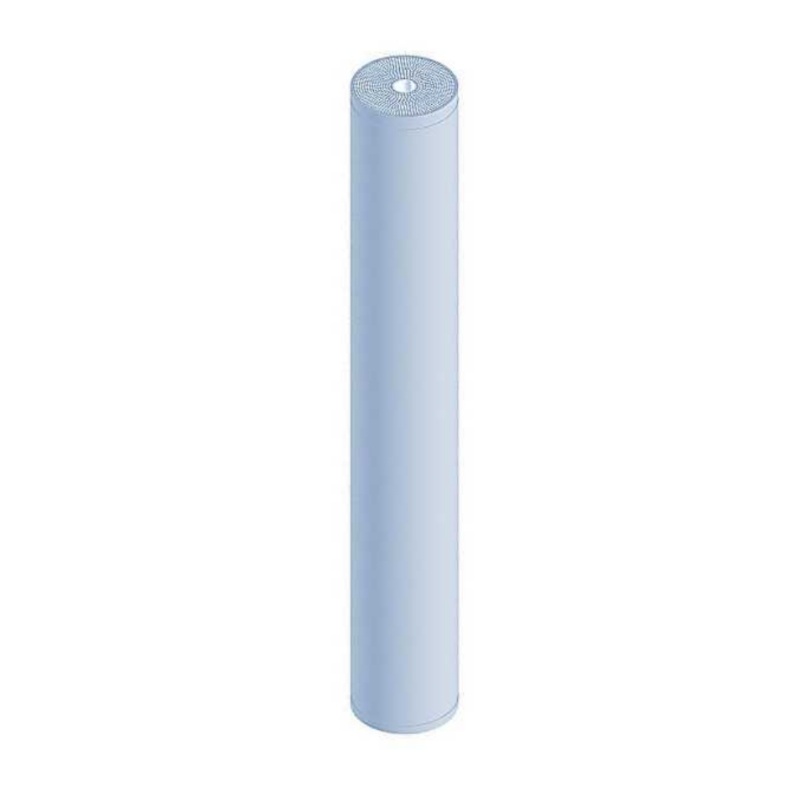

dizzer L 0.9 MB 55 Horizontal (VK-1111)

The dizzer L 0.9 MB 55 Horizontal (VK-1111) is a multibore UF membrane, which is based on inge's proprietary Multibore membrane — the world's strongest UF fiber. Just add / reuse end caps and grooved 8" couplings and you are ready to experience Multibore ultrafiltration at its best.
DuPont Inge dizzer L 0.9 MB 55 Horizontal (VK-1111) Product Data Sheet

Multibore UF Membrane Specifications

UF Membrane	Multibore™ 0.9
Capillaries per fiber	7
Inside diameter of capillary	0.9 mm
Pore size	approx. 0.02 um
Material	PESM
Mode of Operation	In-to-Out filtration

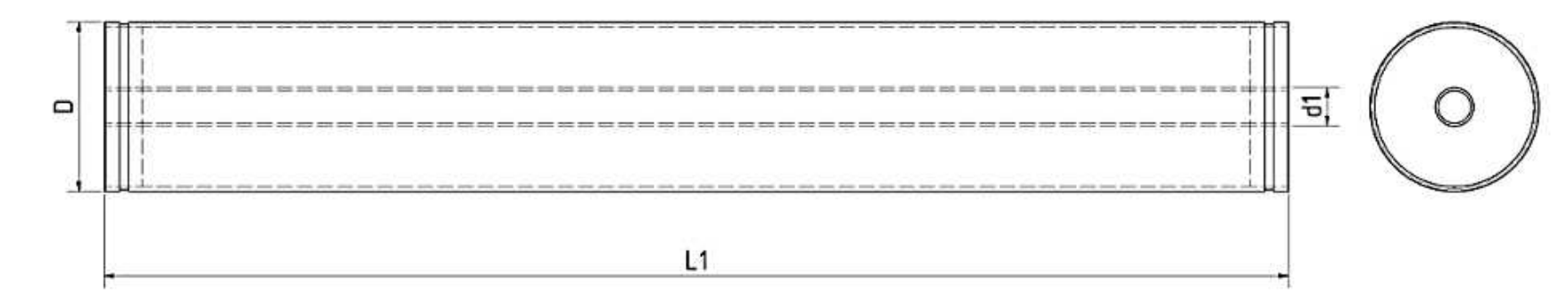

dizzer UF Module Specifications

UF Module Data	dizzer L 0.9 MB 55
Active membrane area	55 m²	592 sq.ft.
Total length of UF element (L1)	1537.5 mm ± 1.5	60.51 inch
Outer diameter UF element (D)	220 mm	8.66 inch
Inner diameter filtrate connection (d1)	42.6 mm	1.68 inch
Shipping weight (wet)	35 kg	78 Ibs.
Casing material	PVC-U , white

Operational Data
Operating parameters	Permissible temperature range	1 – 40 °C	34 – 104 °F
Operating parameters	Max. system pressure	3.0 bar	43.5 psi
Flux rate	Filtration*	60 – 180 l/(m² h)	35 – 105 gfd
	Backwash standard	230 l/(m² h)	135 gfd
	Backwash range	230 – 300 l/(m² h)	135 – 175 gfd
Transmembrane pressure (TMP)	Filtration max. *	3.0 bar	43.5 psi
	Standard backwash *	0.3 – 3.0 bar	5.0 – 43.5 psi
	Burst pressure (Multibore)	> 10.0 bar	> 150.0 psi
Cleaning / disinfection chemicals	NaClO (Sodium Hypochlorite)	max. 500 ppm	max. 250,000 ppm x h (at pH ≥ 9.5)
	H₂O₂ (Hydrogen Peroxide)	max. 500 ppm
	Caustic Soda pH	max. 13
	Acid pH	min. 1
* Specifications apply to normal operating conditions

From Version 0(2018-01) E inge.
