DuPont IntegraTec MB 60 TR S
- Product No.：IntegraTec MB 60 TR S (12071528)

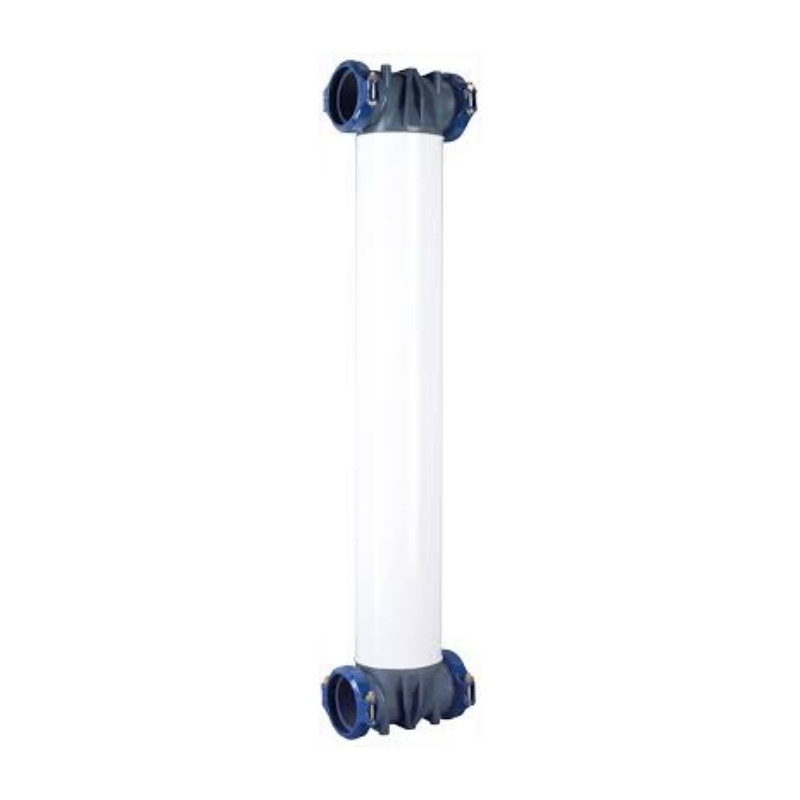

DuPont™ IntegraTec™ MB 60 TR S
(previously dizzer XL 0.9 MB 60 ST)
The IntegraTec MB 60 TR S is a high-capacity pressurized multibore hollow-fiber ultrafiltration (UF) module, designed for use in large-scale water treatment installations, especially where height or space constraints apply.
DuPont IntegraTec MB 60 TR S Product Data SheetKey Features
- Exceptional physical strength and chemical resistance.
- High colloidal particulate, bacteria and virus log removal rate.
- Unique design for high solids loads.
- Optional coagulation can enhance the removal of algae and organics.
- Innovative end-cap design to suit T-Rack S concept with simple assembly and scalability.
- Robust materials for long lifetime.
- Easy installation and low maintenance.
- All wetted parts corrosion free.
Key Applications
- Municipal drinking water.
- Desalination RO pretreatment.
- Industrial utility water.
- Industrial wastewater reuse.
- Ideal for height restricted orr containerized filtration solution.
Module Specification
|
General
|
||
|
Part Number / GMID |
IN-5102 / 12071528 |
|
|
Mode of Filtration |
In-Out Pressurized |
|
|
Membrane Type |

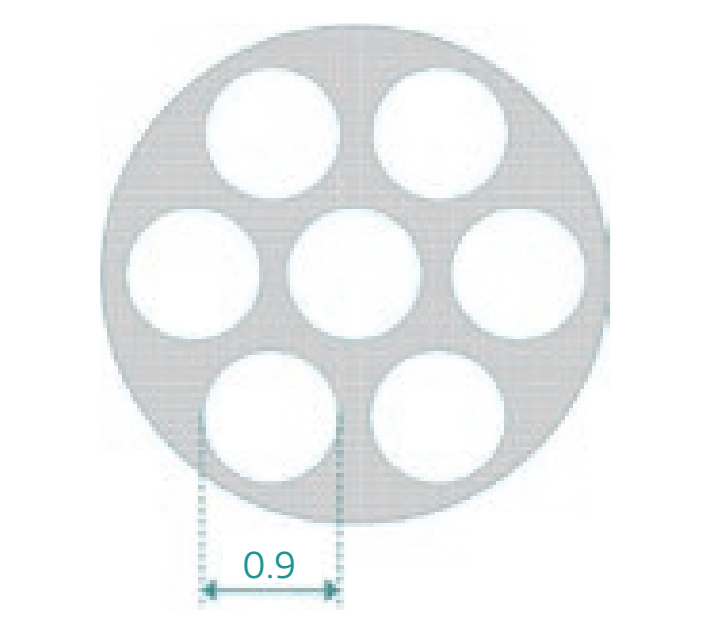

Multibore™ |
|
|
Membrane Material |
PESm |
|
|
Nominal Membrane Pore Size |
0.02 µm |
|
|
Module Operating Process |
Dead-end |
|
|
Housing Material |
PVC-U, white |
|
|

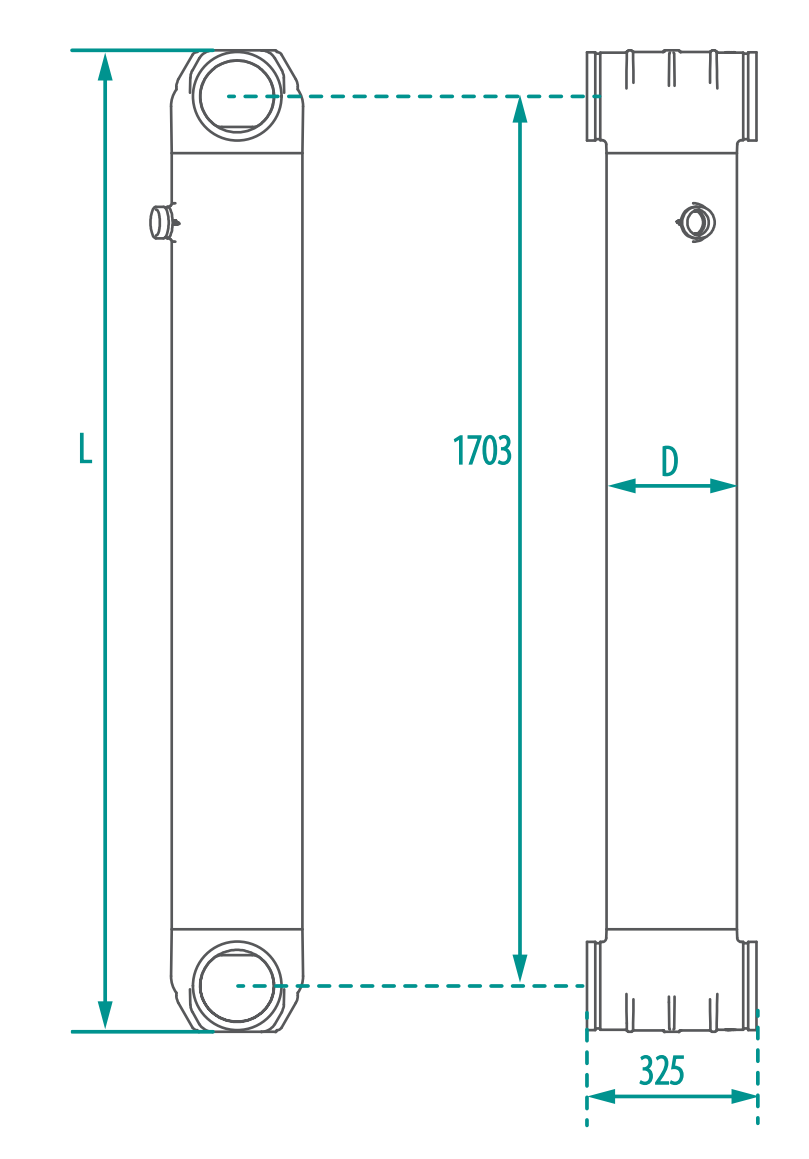

Dimensions
|
||
|
Active Membrane Area
|
60 m² |
646 ft² |
|

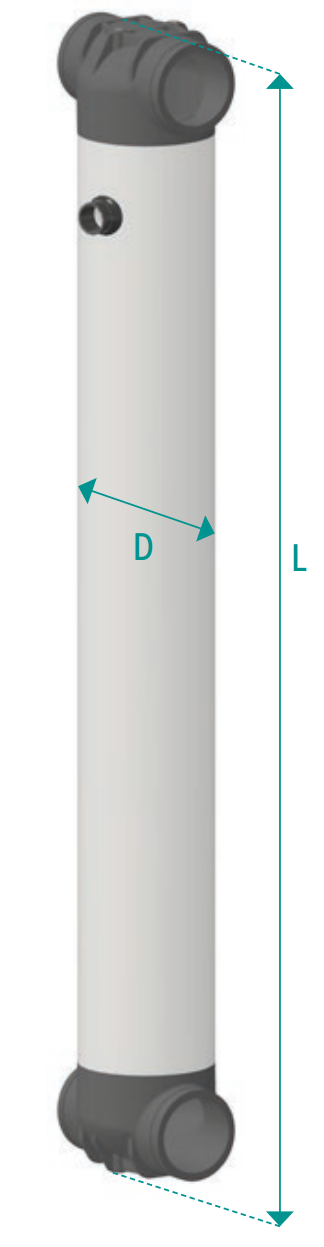

Module Length Including T-Piece (L) |
1,879 mm |
74.0 inch |
|
Module Diameter (D) |
250 mm |
9.8 inch |
|
Weight and Volume
|
||
|
Shipping Weight (Module Only) |
47 kg |
103 lbs. |
|
Weight Empty (Module and Corresponding Frame) |
59 kg |
131 lbs. |
|
Weight Filled (Module and Corresponding Frame) |
123 kg |
270 lbs. |
|
Hold-Up Volume Feed (CIP) |
29 L |
7.6 gal |
|
Hold-Up Volume Membrane Structure (CIP) |
16 L |
4.1 gal |
|
Hold-Up Volume Filtrate (CIP) |
32 L |
8.6 gal |
Suggested Operating Conditions
|
General |
Details |
|
|
Operating Temperature Range |
1 - 40 °C |
34 - 104 °F |
|
Operating pH |
3 - 11 |
|
|
Cleaning pH |
1 - 13 |
|
|
Typical Filtration TMP |
0.1 - 0.6 bar |
1.5 - 8.7 psi |
|
Typical Backwash TMP |
0.3 - 2.0 bar |
4.4 - 29.0 psi |
|
Backwash Flux |
230 L/(m2h) |
135 gfd |
|
Backwash Flow |
13.8 m3h |
60.8 gpm |
|
Operating Limits (Maximum) |
|
|
|
Rate of Temperature Change |
5 °C/min |
9 °F/min |
|
Inlet Pressure (20 - 40 °C) |
5 bar |
73 psi |
|
Rate of Pressure Change |
0.5 bar/sec |
7.3 psi/sec |
|
Filtration TMP |
1.5 bar |
22 psi |
|
Backwash TMP |
3.0 bar |
44 psi |
|
Filtration Flux |
180 L/(m2h) |
106 gfd |
|
Filtration Flow |
10.8 m3h |
47.6 gpm |
|
Backwash Flux |
300 L/(m2h) |
176 gfd |
|
Particle Size |
300 µm |
|
|
Exposure NaOCl |
≤ 250,000 ppm x h (at pH ≥ 9.5) |
|
|
Concentration NaOCl |
500 ppm |
|
T-Rack Configuration
|
Number of Modules
|
T-Rack™ Unit
|
Part Number 1
|
Length 2
|
Membrane Area
|
||
|
mm
|
ft
|
m2
|
ft2
|
|||
|
2 Rows Configuration
|
||||||
|
4 |
TR-S-4-2-1 |
12071170 |
655 |
2.15 |
240 |
2,583 |
|
6 |
TR-S-6-2-1 |
12071171 |
985 |
3.23 |
360 |
3,875 |
|
8 |
TR-S-8-2-1 |
12071172 |
1,315 |
4.31 |
480 |
5,167 |
|
10 |
TR-S-10-2-1 |
12071173 |
1,645 |
5.40 |
600 |
6,459 |
|
12 |
TR-S-12-2-1 |
12071174 |
1,975 |
6.48 |
720 |
7,750 |
|
14 |
TR-S-14-2-1 |
12071175 |
2,305 |
7.56 |
840 |
9,042 |
|
16 |
TR-S-16-2-1 |
12071176 |
2,635 |
8.65 |
960 |
10,334 |
|
18 |
TR-S-18-2-1 |
12071177 |
2,965 |
9.73 |
1,080 |
11,625 |
|
20 |
TR-S-20-2-1 |
12071178 |
3,295 |
10.81 |
1,200 |
12,917 |
|
22 |
TR-S-22-2-1 |
12071179 |
3,625 |
11.89 |
1,320 |
14,209 |
|
24 |
TR-S-24-2-1 |
12071180 |
3,955 |
12.98 |
1,440 |
15,501 |
|
26 |
TR-S-26-2-1 |
12071181 |
4,285 |
14.06 |
1,560 |
16,792 |
|
28 |
TR-S-28-2-1 |
12071182 |
4,615 |
15.14 |
1,680 |
18,084 |
|
30 |
TR-S-30-2-1 |
12071183 |
4,945 |
16.22 |
1,800 |
19,376 |
|
32 |
TR-S-32-2-1 |
12071184 |
5,275 |
17.31 |
1,920 |
20,667 |
|
34 |
TR-S-34-2-1 |
12071185 |
5,605 |
18.39 |
2,040 |
21,959 |
|
36 |
TR-S-36-2-1 |
12071186 |
5,935 |
19.47 |
2,160 |
23,251 |
|
38 |
TR-S-38-2-1 |
12071187 |
6,265 |
20.55 |
2,280 |
24,543 |
|
40 |
TR-S-40-2-1 |
12071188 |
6,595 |
21.64 |
2,400 |
25,834 |
2. Length excluding central header manifold. Tolerance to ISO 2768-1c.
|
Number of Modules
|
T-Rack™ Unit
|
Part Number 1
|
Length 2
|
Membrane Area
|
||
|
mm
|
ft
|
m2
|
ft2
|
|||
|
4 Rows Configuration
|
||||||
|
16 |
TR-S-16-4-1 |
12071189 |
1,315 |
4.31 |
960 |
10,334 |
|
20 |
TR-S-20-4-1 |
12071190 |
1,645 |
5.40 |
1,200 |
12,917 |
|
24 |
TR-S-24-4-1 |
12071191 |
1,975 |
6.48 |
1,440 |
15,501 |
|
28 |
TR-S-28-4-1 |
12071192 |
2,305 |
7.56 |
1,680 |
18,084 |
|
32 |
TR-S-32-4-1 |
12071193 |
2,635 |
8.65 |
1,920 |
20,667 |
|
36 |
TR-S-36-4-1 |
12071194 |
2,965 |
9.73 |
2,160 |
23,251 |
|
40 |
TR-S-40-4-1 |
12071195 |
3,295 |
10.81 |
2,400 |
25,834 |
|
44 |
TR-S-44-4-1 |
12071196 |
3,625 |
11.89 |
2,640 |
28,418 |
|
48 |
TR-S-48-4-1 |
12071197 |
3,955 |
12.98 |
2,880 |
31,001 |
|
52 |
TR-S-52-4-1 |
12071198 |
4,285 |
14.06 |
3,120 |
33,584 |
|
56 |
TR-S-56-4-1 |
12071199 |
4,615 |
15.14 |
3,360 |
36,168 |
|
60 |
TR-S-60-4-1 |
12071200 |
4,945 |
16.22 |
3,600 |
38,751 |
|
64 |
TR-S-64-4-1 |
12071201 |
5,275 |
17.31 |
3,840 |
41,335 |
|
68 |
TR-S-68-4-1 |
12071202 |
5,605 |
18.39 |
4,080 |
43,918 |
|
72 |
TR-S-72-4-1 |
12071203 |
5,935 |
19.47 |
4,320 |
46,502 |
|
76 |
TR-S-76-4-1 |
12071204 |
6,265 |
20.55 |
4,560 |
49,085 |
|
80 |
TR-S-80-4-1 |
12071205 |
6,595 |
21.64 |
4,800 |
51,668 |
1. Rack parts without modules.
2. Length excluding central header manifold. Tolerance to ISO 2768-1c.
General Information
- Avoid any abrupt pressure variations during start-up, operation, shutdown, cleaning or other sequences to prevent possible membrane damage. The maximum pressure change allowable is 0.5 bar/s.
- For assembly please refer to the latest version of the DuPont™ IntegraTec™ Pressurized UF In-Out P Series Assembly Instructions for T-Rack™ Manual (Form No. 45-D02230-en).
- If operating limits and guidelines given in this bulletin are not strictly followed, any warranty will be null and void.
- To control biological growth during extended system shutdowns, a storage solution must be introduced into the membrane modules. Detailed information is given in the DuPont™ IntegraTec™ Pressurized UF Out-In Module Preservation Instruction Manual (Form No. 45-D02946-en).
Regulatory Note
- Certified drinking water modules require specific conditioning procedures prior to producing potable water. For operating parameters, please refer to the DuPont™ IntegraTec™ Pressurized UF In-Out P Series Process and Design Guidelines (Form No. 45-D02234-en).
- Drinking water modules may be subjected to additional regulatory restrictions in some countries. Please check local regulatory guidelines and application status before use.
- Flushing needs to be done according to the DuPont™ IntegraTec™ Pressurized UF Out-In Module Rinsing Procedure (Form No. 45-D02947-en)
Notice:
If your customer insists existing brand, please contact DuPont or its distributors.
If you and your customer accept economical & quick-delivery equivalent of similar or better performance with same warranty, kindly send us an inquiry now.
