DuPont™ IntegraTec™ MB 80 TR
(previously dizzer XL 0.9 MB 80 WT)

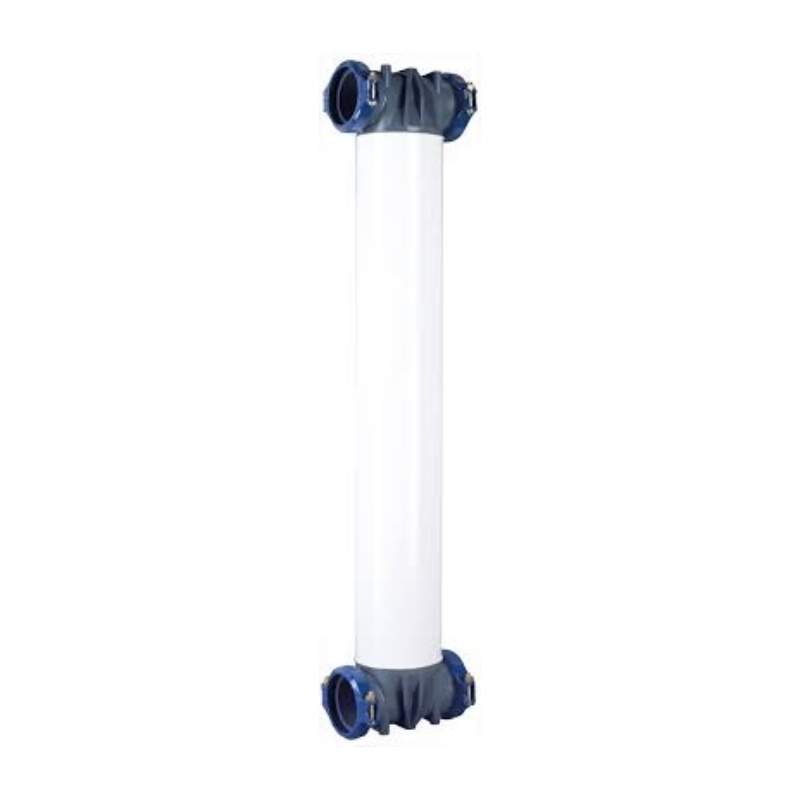

DuPont IntegraTec MB 80 TR (12071530) with proven multibore PES fiber offers outstanding physical strength and chemical resistance, effectively eliminating harmful particles, bacteria, and viruses. Its design also facilitates the efficient removal of algae and organic matter. The end-cap design seamlessly integrates with the T-Rack™ concept, making assembly and scalability effortless. These modules are made from durable materials that ensure a long lifespan with minimal maintenance expenses. Furthermore, all components in contact with water are corrosion-free, ensuring optimal efficiency throughout the module's lifetime.
DuPont IntegraTec MB 80 TR (12071530) Product Data SheetKey Features
- Exceptional physical strength and chemical resistance.
- High colloidal particulate, bacteria and virus log removal rate.
- Unique design for high solids loads.
- Optional coagulation can enhance the removal of algae and organics.
- Innovative end-cap design to suit T-Rack S concept with simple assembly and scalability.
- Robust materials for long lifetime.
- Easy installation and low maintenance.
- All wetted parts corrosion free.
Key Applications
- Municipal drinking water.
- Desalination RO pretreatment.
- Industrial utility water.
- Industrial wastewater reuse.
- Ideal for large systems.
Module Specification
|
General
|
||
|
Part Number / GMID |
IN-5109 / 12071530 |
|
|
Mode of Filtration |
In-Out Pressurized |
|
|
Membrane Type |
Multibore™ |
|
|
Membrane Material |
PESm |
|
|
Nominal Membrane Pore Size |
0.02 µm |
|
|
Module Operating Process |
Dead-end |
|
|
Housing Material |
PVC-U, white |
|
|

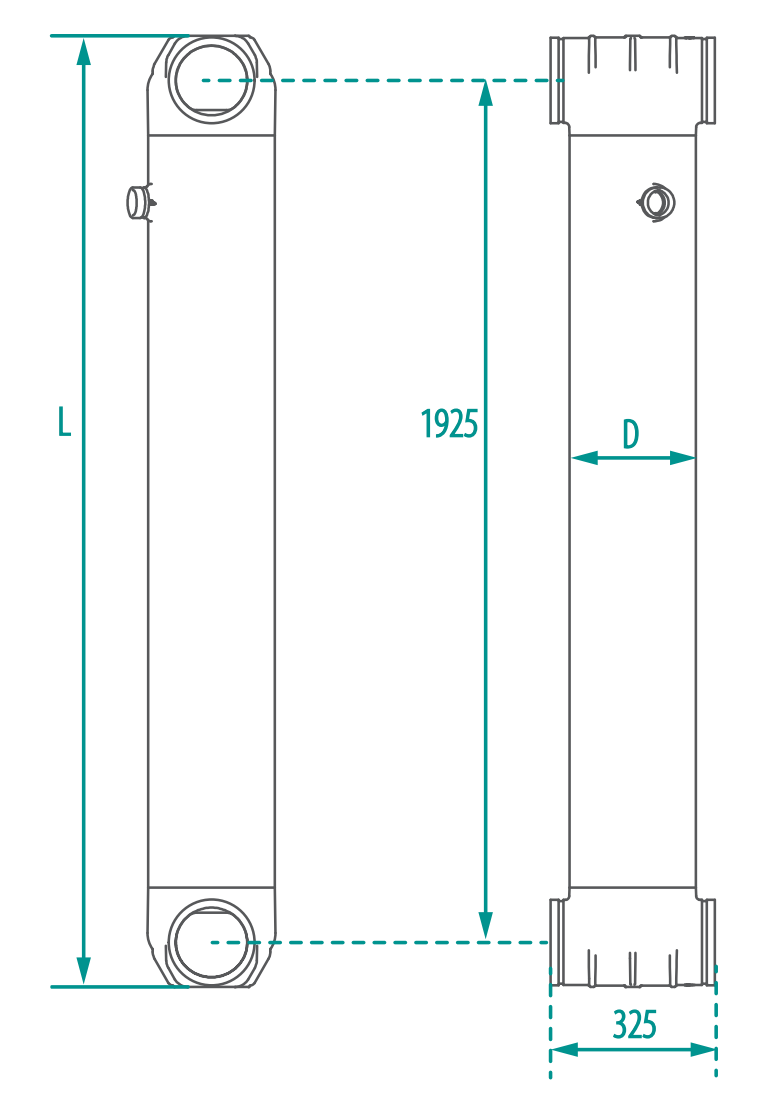

Dimensions
|
||
|
Active Membrane Area
|
80 m² |
861 ft² |
|
Module Length Including T-Piece (L) |
2,101 mm |
82.7 inch |
|
Module Diameter (D) |
250 mm |
9.8 inch |
|
Weight and Volume
|
||
|
Shipping Weight (Module Only) |
54 kg |
120 lbs. |
|
Weight Empty (Module and Corresponding Frame) |
67 kg |
147 lbs. |
|
Weight Filled (Module and Corresponding Frame) |
133 kg |
292 lbs. |
|
Hold-Up Volume Feed (CIP) |
33 L |
8.7 gal |
|
Hold-Up Volume Membrane Structure (CIP) |
20 L |
5.4 gal |
|
Hold-Up Volume Filtrate (CIP) |
31 L |
8.3 gal |
Suggested Operating Conditions
|
General |
Details |
|
|
Operating Temperature Range |
1 - 40 °C |
34 - 104 °F |
|
Operating pH |
3 - 11 |
|
|
Cleaning pH |
1 - 13 |
|
|
Typical Filtration TMP |
0.1 - 0.6 bar |
1.5 - 8.7 psi |
|
Typical Backwash TMP |
0.3 - 2.0 bar |
4.4 - 29.0 psi |
|
Backwash Flux |
230 L/(m2h) |
135 gfd |
|
Backwash Flow |
18.4 m3h |
81.0 gpm |
|
Operating Limits (Maximum) |
|
|
|
Rate of Temperature Change |
5 °C/min |
9 °F/min |
|
Inlet Pressure (20 - 40 °C) |
5 bar |
73 psi |
|
Rate of Pressure Change |
0.5 bar/sec |
7.3 psi/sec |
|
Filtration TMP |
1.5 bar |
22 psi |
|
Backwash TMP |
3.0 bar |
44 psi |
|
Filtration Flux |
180 L/(m2h) |
106 gfd |
|
Filtration Flow |
14.4 m3h |
63.4 gpm |
|
Backwash Flux |
300 L/(m2h) |
176 gfd |
|
Particle Size |
300 µm |
|
|
Exposure NaOCl |
≤ 250,000 ppm x h (at pH ≥ 9.5) |
|
|
Concentration NaOCl |
500 ppm |
|
T-Rack Configuration
|
Number of Modules
|
T-Rack™ Unit
|
Part Number 1
|
Length 2
|
Membrane Area
|
||
|
mm
|
ft
|
m2
|
ft2
|
|||
|
Single-Sided Connection to Manifold
|
||||||
|
2 Rows Configuration
|
||||||
|
4
|
TR-4-2-1
|
12071552
|
655
|
2.15
|
320
|
3,444
|
|
6
|
TR-6-2-1
|
12071553
|
985
|
3.23
|
480
|
5,167
|
|
8
|
TR-8-2-1
|
12071554
|
1,315
|
4.31
|
640
|
6,889
|
|
10
|
TR-10-2-1
|
12071555
|
1,645
|
5.40
|
800
|
8,611
|
|
12
|
TR-12-2-1
|
12071556
|
1,975
|
6.48
|
960
|
10,333
|
|
14
|
TR-14-2-1
|
12071557
|
2,305
|
7.56
|
1,120
|
12,056
|
|
16
|
TR-16-2-1
|
12071558
|
2,635
|
8.65
|
1,280
|
13,778
|
|
18
|
TR-18-2-1
|
12071559
|
2,965
|
9.73
|
1,440
|
15,500
|
|
20
|
TR-20-2-1
|
12071560
|
3,295
|
10.81
|
1,600
|
17,222
|
|
22
|
TR-22-2-1
|
12071561
|
3,625
|
11.89
|
1,760
|
18,944
|
|
24
|
TR-24-2-1
|
12071562
|
3,955
|
12.98
|
1,920
|
20,667
|
|
26
|
TR-26-2-1
|
12071563
|
4,285
|
14.06
|
2,080
|
22,389
|
|
28
|
TR-28-2-1
|
12071091
|
4,615
|
15.14
|
2,240
|
24,111
|
|
30
|
TR-30-2-1
|
12071092
|
4,945
|
16.22
|
2,400
|
25,833
|
2. Length excluding central header manifold. Tolerance to ISO 2768-1c.
|
Number of Modules
|
T-Rack™ Unit
|
Part Number 1
|
Length 2
|
Membrane Area
|
||
|
mm
|
ft
|
m2
|
ft2
|
|||
|
Single-Sided Connection to Manifold
|
||||||
|
4 Rows Configuration
|
||||||
|
32 |
TR-32-4-1 |
12071122 |
2,635 |
8.65 |
2,560 |
27,556 |
|
36 |
TR-36-4-1 |
12071096 |
2,965 |
9.73 |
2,880 |
31,000 |
|
40 |
TR-40-4-1 |
12071097 |
3,295 |
10.81 |
3,200 |
34,444 |
|
44 |
TR-44-4-1 |
12071098 |
3,625 |
11.89 |
3,520 |
37,889 |
|
48 |
TR-48-4-1 |
12071099 |
3,955 |
12.98 |
3,840 |
41,333 |
|
52 |
TR-52-4-1 |
12071100 |
4,285 |
14.06 |
4,160 |
44,778 |
|
56 |
TR-56-4-1 |
12071101 |
4,615 |
15.14 |
4,480 |
48,222 |
|
60 |
TR-60-4-1 |
12071102 |
4,945 |
16.22 |
4,800 |
51,667 |
|
Double-Sided Connection to Manifold
|
||||||
|
4 Rows Configuration
|
||||||
|
64 |
TR-64-4-2 |
12071123 |
5,270 |
17.29 |
5,120 |
55,111 |
|
68 |
TR-68-4-23 |
12071124 |
5,600 |
18.37 |
5,440 |
58,555 |
|
72 |
TR-72-4-2 |
12071105 |
5,930 |
19.46 |
5,760 |
62,000 |
|
76 |
TR-76-4-23 |
12071106 |
6,260 |
20.54 |
6,080 |
65,444 |
|
80 |
TR-80-4-2 |
12071107 |
6,590 |
21.62 |
6,400 |
68,889 |
|
84 |
TR-84-4-23 |
12071108 |
6,920 |
22.70 |
6,720 |
72,333 |
|
88 |
TR-88-4-2 |
12071109 |
7,250 |
23.79 |
7,040 |
75,778 |
|
92 |
TR-92-4-23 |
12071110 |
7,580 |
24.87 |
7,360 |
79,222 |
|
96 |
TR-96-4-2 |
12071111 |
7,910 |
25.95 |
7,680 |
82,667 |
|
100 |
TR-100-4-23 |
12071112 |
8,240 |
27.03 |
8,000 |
86,111 |
|
104 |
TR-104-4-2 |
12071113 |
8,570 |
28.12 |
8,320 |
89,555 |
|
108 |
TR-108-4-23 |
12071114 |
8,900 |
29.20 |
8,640 |
93,000 |
|
112 |
TR-112-4-2 |
12071115 |
9,230 |
30.28 |
8,960 |
96,444 |
|
116 |
TR-116-4-23 |
12071116 |
9,560 |
31.36 |
9,280 |
99,889 |
|
120 |
TR-120-4-2 |
12071117 |
9,890 |
32.45 |
9,600 |
103,333 |
1. Rack parts without modules.
2. Length excluding central header manifold. Tolerance to ISO 2768-1c.
3. Asymmetric module arrangement.
General Information
- Avoid any abrupt pressure variations during start-up, operation, shutdown, cleaning or other sequences to prevent possible membrane damage. The maximum pressure change allowable is 0.5 bar/s.
- For assembly please refer to the latest version of the DuPont™ IntegraTec™ Pressurized UF In-Out P Series Assembly Instructions for T-Rack™ Manual (Form No. 45-D02230-en).
- If operating limits and guidelines given in this bulletin are not strictly followed, any warranty will be null and void.
- To control biological growth during extended system shutdowns, a storage solution must be introduced into the membrane modules. Detailed information is given in the DuPont™ IntegraTec™ Pressurized UF Out-In Module Preservation Instruction Manual (Form No. 45-D02946-en).
Regulatory Note
- Certified drinking water modules require specific conditioning procedures prior to producing potable water. For operating parameters, please refer to the DuPont™ IntegraTec™ Pressurized UF In-Out P Series Process and Design Guidelines (Form No. 45-D02234-en).
- Drinking water modules may be subjected to additional regulatory restrictions in some countries. Please check local regulatory guidelines and application status before use.
- Flushing needs to be done according to the DuPont™ IntegraTec™ Pressurized UF Out-In Module Rinsing Procedure (Form No. 45-D02947-en)
Notice:
If your customer insists existing brand, please contact DuPont or its distributors.
If you and your customer accept economical & quick-delivery equivalent of similar or better performance with same warranty, kindly send us an inquiry now.
