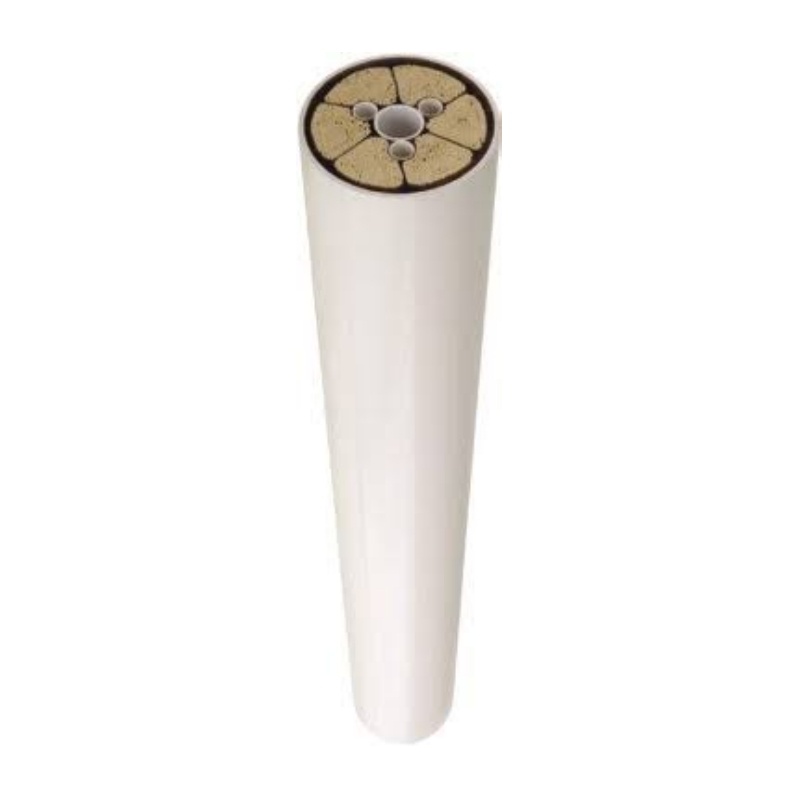

DuPont™ IntegraTec™ MB 55 H

• Exceptional physical strength and chemical resistance.
• High colloidal particulate, bacteria and virus log removal rate.
• Excellent filtration permeability.
• Optional coagulation can enhance the removal of algae and organics.

• Ideal design to integrate in horizontal pressure vessels.

Key Applications

• Municipal drinking water.
• Desalination RO pretreatment.
• Industrial utility water.
• Desgined as a replacement option in alternative UF systems

Module Specification

General
Part Number	IN-1111/ 12071524 (includes EP-0115/ 12070222)
Mode of Filtration	In-Out Pressurized
Membrane Type	Multibore™
Membrane Material	PESm
Nominal Membrane Pore Size	0.02 µm
Module Operating Process	Dead-end
Housing Material	PVC-U, white
Dimensions
Active Membrane Area	55 m²	592 ft²
Module Length	1,537.5 ± 1.5 mm	60.5 inch
Module Diameter (D)	220 ± 1.5 mm	8.7 inch
Filtrate Collector Inner Diameter (d)	42.60 mm	1.7 inch
Maximum Insertion Depth of Interconnectors	50 mm	2.0 inch
Weight and Volume
Shipping Weight (Module Only)	31 kg	69 lbs.
Weight Empty	31 kg	69 lbs.
Weight Filled	71 kg	156 lbs.
Hold-Up Volume Feed (CIP) 1	13 L	3.5 gal
Hold-Up Volume Membrane Structure (CIP)	14 L	3.7 gal
Hold-Up Volume Filtrate (CIP)	18 L	4.7 gal

1. Volum applies to the module only (not the total volume of the pressue vessel).

Suggested Operating Conditions

General Information

•  Avoid any abrupt pressure variations during start-up, operation, shutdown, cleaning or other sequences to prevent possible membrane damage. The maximum pressure change allowable is 0.5 bar/s.
• For assembly please refer to the latest version of the DuPont™ IntegraTec™ Pressurized UF In-Out I Series Assembly Manual (Form No. 45-D02563-en).
• If operating limits and guidelines given in this bulletin are not strictly followed, any warranty will be null and void.
• To control biological growth during extended system shutdowns, a storage solution must be introduced into the membrane modules. Detailed information is given in the DuPont™ IntegraTec™ Pressurized UF Out-In Module Preservation Instruction Manual (Form No. 45-D02946-en).

Regulatory Note

• Certified drinking water modules require specific conditioning procedures prior to producing potable water. For operating parameters, please refer to the DuPont™ IntegraTec™ Pressurized UF In-Out I Series Requirements for Horizontal Modules (Form No. 45-D02233-en).
• Drinking water modules may be subjected to additional regulatory restrictions in some countries. Please check local regulatory guidelines and application status before use.
• Flushing needs to be done according to the DuPont™ IntegraTec™ Pressurized UF Out-In Module Rinsing Procedure (Form No. 45-D02947-en)
