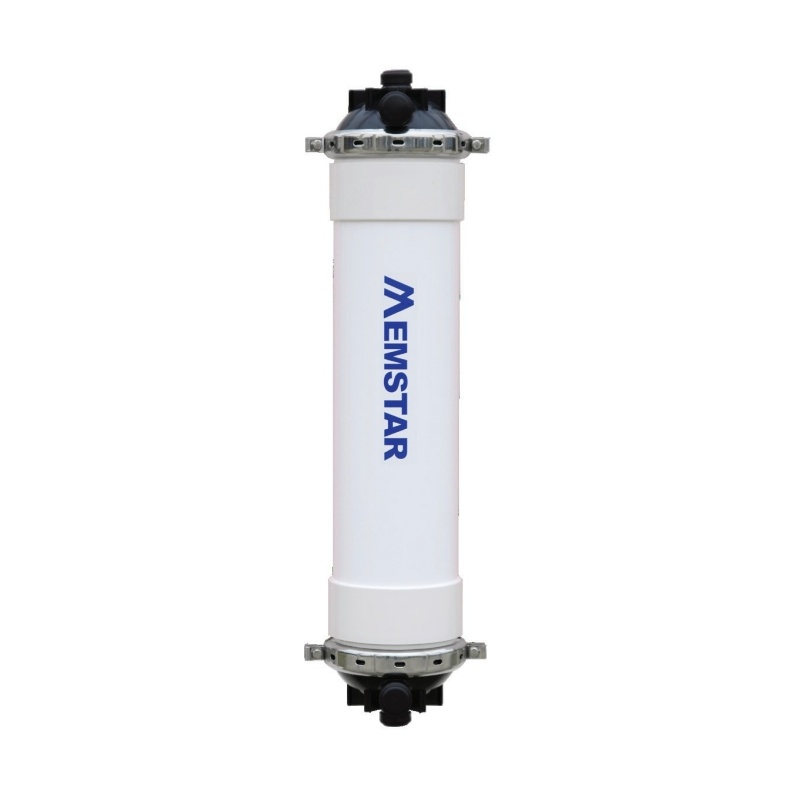

Memstar UF-1010E Membrane

Product No.：UF-1010E
Online Inquiry

Pressurized UF Specifications

10" Module Series - NIPS

Memstar UF-1010E pressurized ultrafiltration (UF) hollow fiber modules utilize our advanced, engineered 10” module designs and NIPS PVDF fiber technology, providing customers products that are cost effective, high performing, and reliable. Our pressurized UF modules with NIPS PVDF are used in hundreds of plants globally to remove suspended solids, including bacteria, viruses, and organic and inorganic compounds. Typical applications include the treatment of surface water and seawater for RO pretreatment.
Memstar UF-1010E Pressurized UF Membrane Data Sheet

Key Features and Benefits

Outside to in filtration = Wider operating window allowing for higher turbidity feeds
Extreme oxidant tolerance = Long life, challenging applications
Industry leading membrane surface area = Fewer racks, smaller footprint
No backwash = High recovery (>97% typical), less waste, lower CAPEX

Module Specifications

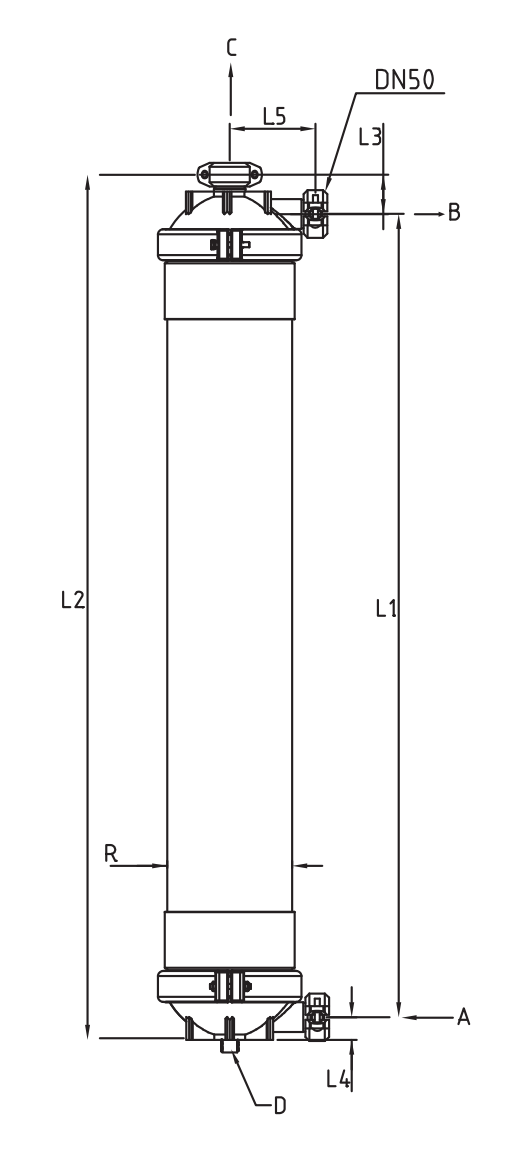

Memstar UF-1010E Pressurized UF Membrane Dimension

Module Type	UF-1010E
Membrane Material	PVDF (NIPS)
Nominal Pore Size (um)	0.04
Filtration Mode	Outside-in
Housing Material	uPVC/ABS
Potting Material	Epoxy/Polyurethane
Filtration Surface Area (m²)[ft²]	55 [592]
Typical Filtrate Flowrate (m³/hr) [gpm]	3 - 3.9 [13 - 17]
Column volume (L) [gal]	25 [6.6]
Weight (kg) [lbs]	35 [77]
L1 (mm) [inches]	1,073 [42.2]
L2 (mm) [inches]	1,195 [47]
L3 (mm) [inches]	79 [3.1]
L4 (mm) [inches]	45 [1.8]
L5 (mm) [inches]	172 [6.8]
R (mm) [inches]	250 [9.8]
A	Feed/Drain Port - DN50
B	Filtrate Port - DN50
C	Concentrate Bleed Port - DN50
D	Air Inlet Port - Ø25/19

MODULE OPERATING PARAMETERS	ALLOWABLE RANGE
Operating temperature (°C) [°F]	5 – 45 [41 – 113]
Typical flux (LMH) [gfd]¹	40 – 120 [25 – 70]
Air Scour Flowrate (m³/hr/module) [cfm]	15 [9]
Instantaneous chlorine tolerance (ppm)	2,000
Maximum lifetime chlorine tolerance (ppm-hrs)	500,000
Maximum feed turbidity (NTU)²	300
Maximum transmembrane pressure (bar) [psi]	1.5 [22]
Maximum feed pressure (bar) [psi]³	3 [44]
Oil content in feed water (ppm)	< 0.5
pH range	Operating: 1 – 10; Cleaning: 1 – 11
Allowed particle size in feed water (mm)²	≤ 0.5 ≤ 0.12 for seawater feeds

1. Flux selection depends on feed type and water quality. Please consult Memstar for flux selection.

2. Please consult Memstar for higher values.

3. At maximum temperature of 45°C.

From MUSA-SS-TECH-18023.101
