Products >> Hollow Fiber MBR Module >> MBR Cassette

ZeeWeed 500EV R-16M LEAPmbr Cassette

Product No.：ZW500EV R-16M
Online Inquiry

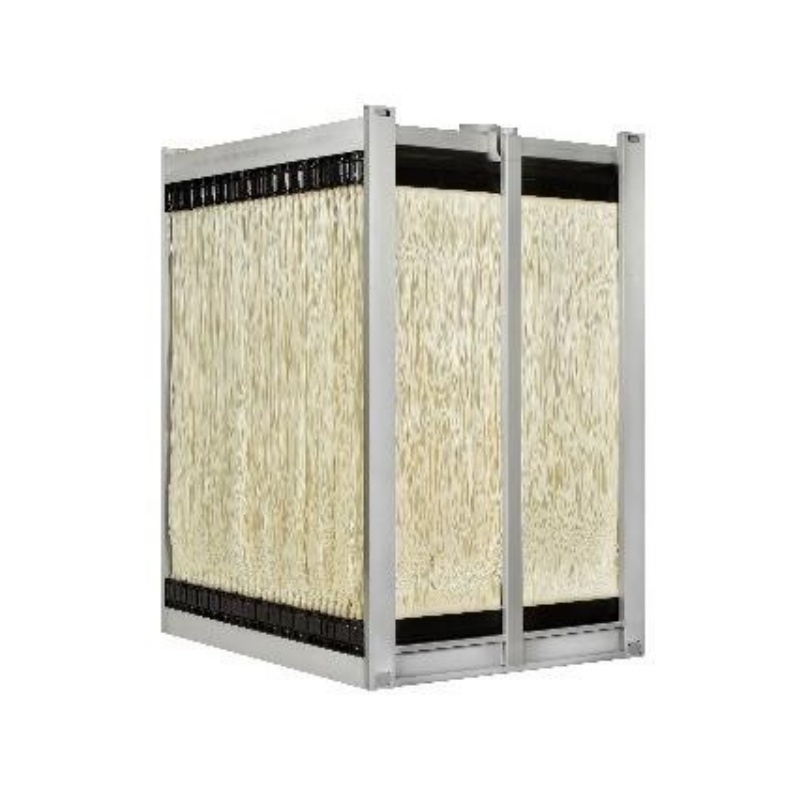

Veolia Suez ZeeWeed 500EV R-16M LEAPmbr Cassette

Veolia Suez ZeeWeed 500EV R-16M is a next-generation ultrafiltration membrane cassette designed for membrane bioreactor (MBR) wastewater treatment applications which offers enhanced capacity, efficiency and footprint performance.

Cassette Properties

Cassette Dimensions

Veolia Suez ZeeWeed 500EV R-16M LEAPmbr Cassette Dimension

Product

Width (A) mm (in)

Length (B) mm (in)

Height (C)
mm (in)

R-16M

1,744

(68.7)

738

(29.1)

2,512

(98.9)

Cassette Tie-Points & Weights

Application Technology	Product	Max. # Modules	Min. # Modules	Permeate Connection	Air Connection	Max. Shipping Weight¹ kg (lb)	Wet Weight² kg (lb)	Lifting Design Weight³ kg (lb)	Cassette Material⁴
LEAPmbr Pulsed Areation	500EV R-16M	16	8	1 x 4" FNPT	1 x 3” FNPT half coupling	759 (1,673)	797 (1,757)	2,268 (5,000)	316L SS frame with engineered plastics

¹ Crated with maximum number of modules
² Wet weight of a clean, fully populated cassette. Lower module population will reduce this value. Cassette support method and lifting module can also vary this weight, depending on desgin. An estimate is used based on several standard designs
³Product lifting design weight assumes a fully populated cassette with solids accumulation, standard lifting module and hanging arms. Alternative support and lifting methods could vary this value
⁴ Alternative grades of stainless steel offered for cassettes are 2205 and SMO254 as required

Notice:
If your customer insists existing brand, please contact Veolia or its distributors.
If you and your customer accept economical & quick-delivery equivalent of similar or better performance with same warranty, kindly send us an inquiry now.
