  • Hyflux K600ER Water Filter Module

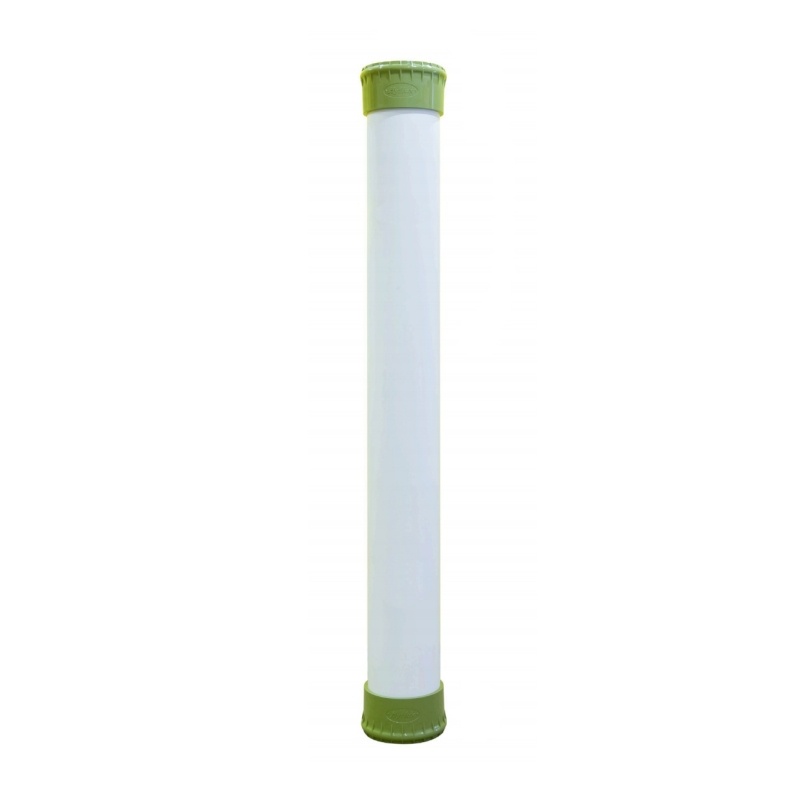

Hyflux K600ER Water Filter Module

Hyflux K600ER Water Filter Module

 General Inforamtion

When it comes to filtration, Hyflux’s Kristal® polymeric hollow fibre ultrafiltration membranes and systems offer a superior level of performance, efficiency and reliability. Designed with a cross-flow and out-to-in configuration, Kristal® membranes deliver consistent, high quality product water even in challenging feed water conditions.
Hyflux K600ER Water Filter Module Product Data Sheet

Product Features

  • Enhanced hydrophilic material (PES and PVDF)
  • Reduced fouling
  • Consistent, high quality permeate
  • Enhanced tolerance to cleaning chemicals

Operating Features

  • Sharp rejection profile
  • Long lifespan
  • Small footprint
  • Automatic backwash function
  • Efficient system recovery

Key Applications

  • Water treatment/purification
  • Pre-treatment filtration
  • Wastewater recycling
  • Industrial process/waste fluid treatment

Dimensions

Hyflux K600ETN Dimension

Model

Diameter×Length
(mm /inch)

Membrane Area
(m2 /ft2)


K600ER


257.8×2130 /10.2×83.9


60 /646
Specifications

Membrane Type

K600ER

Structure

Asymmetric

Material

Modified PES

Outer diameter (mm/inch)

1.35 / 0.053

Inner diameter (mm/inch)

0.7 / 0.028

Wall thickness (mm/inch)

0.33 /0.013

Nominal Molecular Weight Cut Off (Dalton)

120,000

Bacteria rejection (%)

> 99.9999*

Tensile force (N)

> 3

*Verified by accredited third-party laboratory

Operating Parameters

Module

K600ER

Feed inlet (inch)

1.5NPT

Permeate outlet (inch)

1.5NPT

Reject outlet (inch)

1.0NPT

Dry weight (kg/lbs)

55 / 121

Wet weight (kg/lbs)

100 / 220

Housing shell

PVC

End caps

PVC

Sealant

Hyflux proprietary composite potting material

Flow type

Outside-in

Operating Temperature Range (°C)

5--40

Clean water flux at 30°C (LMH/GFD)

170 /100

Operating pH Range

2-10

Cleaning pH Range

2-11

Max. NaOCl – cleaning (ppm)

500

Max. NaOCl – continuous (ppm)

10

Operating TMP (bar)

0.2-1.5

Max Feed Pressure (bar)

2.5

Max. backwash TMP (bar)

2.0

Max. cleaning TMP (bar)

2.0

Notice:
Since Hyflux discontinued its business, for replacement projects, please send us an inquiry now.
