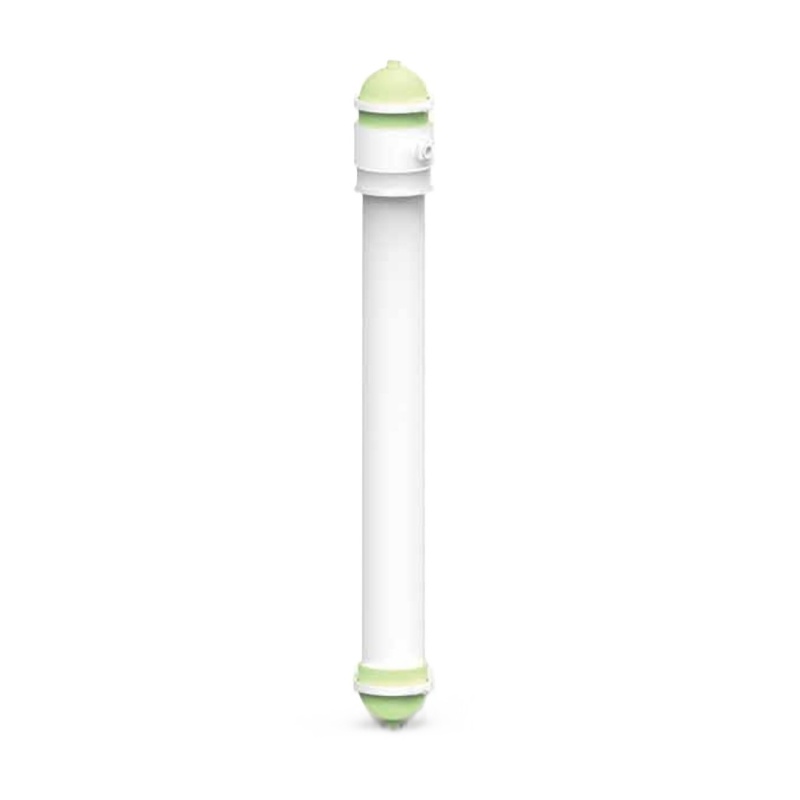

Hyflux K-600ET0820 Water Filter Module

Product No.：K-600ET0820
Online Inquiry

General Inforamtion

Fully designed and developed by Hyflux, Kristal® UF membranes have proven to consistently achieve optimal results in treating industrial and municipal wastewater as well as seawater, even in aggressive environments.

Kristal® has received the NSF mark of approval in 2010. One of seven UF membrane products in the world to receive such recognition.
Hyflux K-600ET0820 Water Filter Module Product Data Sheet

Product Features

Modified polyethersulfone (PES) or polyvinylidene difluoride (PVDF) for greater hydrophilicity and less fouling
Asymmetric structure for higher flux
Enhanced tolerance to cleaning chemicals
Sharp rejection profile for high permeate quailty

Operating Features

Proven long service life
Effective air-scouring backwash
Small footprint

Dimensions

Hyflux K-600ET0820 Water Filter Module Dimension

Model	Diameter×Length (mm)	Membrane Area (m²)
K-600ET0820	344×2340	60

Specifications

Module	K-600ET0820
Membrane Type	600E
Material	Modified PES
O.D./I.D./Wall Thickness (mm)	1.35 / 0.7 / 0.325
Nominal Molecular Weight Cut Off (Dalton)	120k
Bacteria Log Reduction Value (LRV)*	≥6

*Tested by accredited laboratory for bacteria reduction

Module	K-600ET0820
Membrane Type	600E
End Caps Materials	PVC
Sealant Materials	Hyflux Proprietary Composite Potting Materials
Housing Shell Materials	PVC
Flow Type	Outside-In
Operating Temperature Range (°C)	5--40
Clean Water Flux (LMH)	170
Operating pH Range	2-10
Cleaning pH Range	2-11
Service TMP Range (bar)	0.2-1.5
Max Feed Pressure (bar)	2.5
Operating Weight (Wet) (kg)	100

* Subject to feed quality

Key Applications

RO and NF pretreatment
1. Industrial and municipal wastewater reclamation
2. Ultrapure water production
3. Seawater desalination
Ion-exchange pretreatment
Potable water production
Industrial wastewater treatment for discharge
Resource recovery from industrial waste streams such as semiconductor, pulp and paper production, textiles etc.
