  • Hyflux K-600B0820 Water Filter Membrane

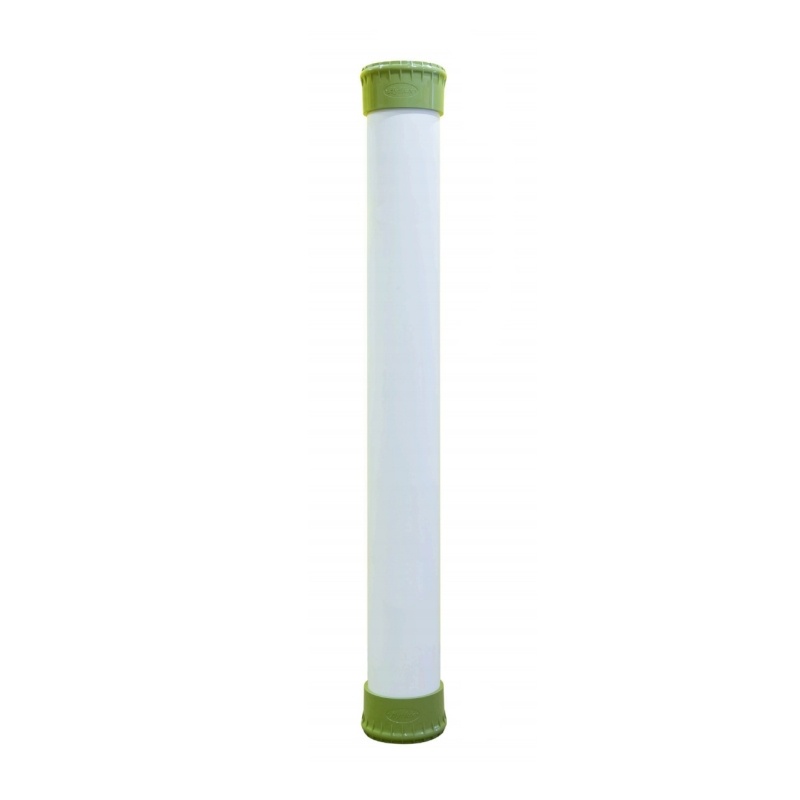

Hyflux K-600B0820 Water Filter Membrane

Hyflux K-600B0820 Water Filter Membrane

 General Inforamtion

Fully designed and developed by Hyflux, Kristal® UF membranes have proven to consistently achieve optimal results in treating industrial and municipal wastewater as well as seawater, even in aggressive environments.
Kristal® has received the NSF mark of approval in 2010. One of seven UF membrane products in the world to receive such recognition.
Hyflux K-600B0820 Water Filter Membrane Product Data Sheet

Product Features

  • Modified polyethersulfone (PES) or polyvinylidene difluoride (PVDF) for greater hydrophilicity and less fouling
  • Asymmetric structure for higher flux
  • Enhanced tolerance to cleaning chemicals
  • Sharp rejection profile for high permeate quailty

Operating Features

  • Proven long service life
  • Effective air-scouring backwash
  • Small footprint

Dimensions

Hyflux K-600B0820 Water Filter Membrane Dimension

Model

Diameter×Length (mm)

Membrane Area (m2)


K-600B0820


257.8×2130


70

Specifications

Module

K-600B0820

Membrane Type

600B

Material

Modified PES

O.D./I.D./Wall Thickness (mm)

1.15 / 0.6 / 0.27

Nominal Molecular Weight Cut Off (Dalton)

  60k

Bacteria Log Reduction Value (LRV)*

6

*Tested by accredited laboratory for bacteria reduction

Module

K-600B0820

Membrane Type

600B

End Caps Materials

PVC

Sealant Materials

Hyflux Proprietary Composite Potting Materials

Housing Shell Materials

PVC

Flow Type

Outside-In

Operating Temperature Range (°C)

5--40

Clean Water Flux (LMH)

135

Operating pH Range

2-10

Cleaning pH Range

2-11

Service TMP Range (bar)

0.2-1.5

Max Feed Pressure (bar)

2.5

Operating Weight (Wet) (kg)

100

* Subject to feed quality

Key Applications
  • RO and NF pretreatment
    1. Industrial and municipal wastewater reclamation
    2. Ultrapure water production
    3. Seawater desalination
  • Ion-exchange pretreatment
  • Potable water production
  • Industrial wastewater treatment for discharge
  • Resource recovery from industrial waste streams such as semiconductor, pulp and paper production, textiles etc.
From K-2010-11-4

Notice:
Since Hyflux discontinued its business, for replacement projects, please send us an inquiry now.
