Products >> Hollow Fiber MBR Module >> Veolia MBR Membrane

ZeeWeed 500D RX12 Ultrafiltration Membrane

Product No.：ZeeWeed 500D RX12
Online Inquiry

General Information

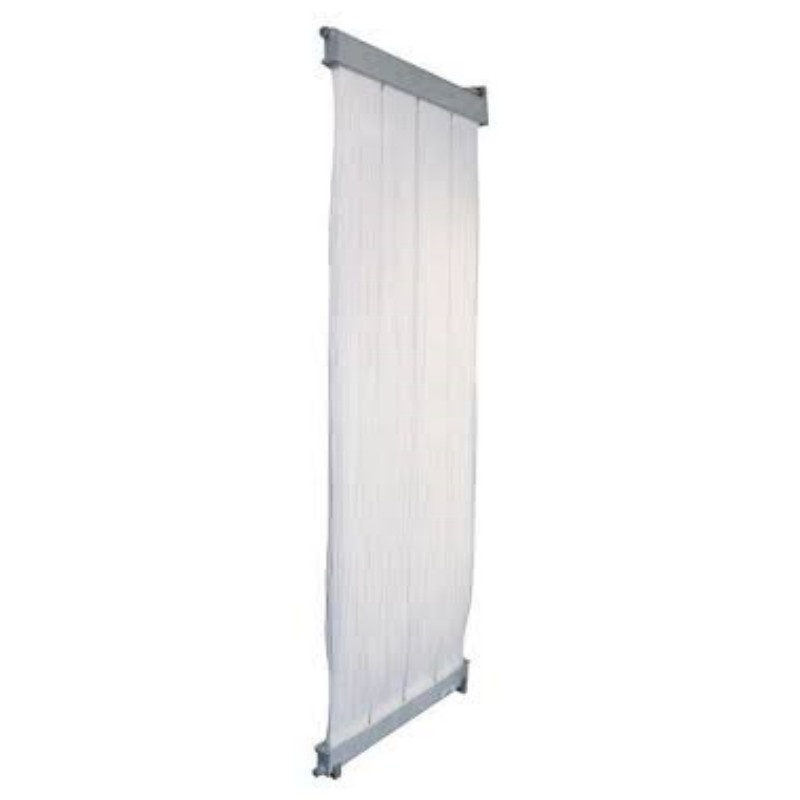

ZeeWeed 500D RX12 is a hollow fiber MBR module made of non-ionic and hydrophilic reinforced PVDF hollow fibers by Veolia (formerly Suez/GE).
ZeeWeed 500D RX12 Datasheet

Module Dimensions

ZeeWeed 500D RX12 Ultrafiltration Membrane Dimensions

Product

Width (A) mm (in)

Header-to-Header Length (B) mm (in)

Depth (C) mm (in)

500D RX12

844 (33.2)

1,940 (76.4)

49 (1.9)

* Overall height is 2,198 mm (86.5 inch) and 1,835 mm (72.25 inch).

Module Properties

Application

Membrane
Surface
Area m² (ft2)

Max. Shipping
Weight¹
kg (lb)

Lifting Weight²
kg (lb)

Material

Nominal
Pore Size (µm)

Fiber Diameter
(mm)

Surface
Properties

Fiber Tensile Strength (N)

Flow Path

MBR

40.0 (430)

28 (61)

28 - 75
(61 - 164)

PVDF

0.04

2.2

Non-ionic & Hydrophilic

> 600

Outside-In

¹ Packaged
² Varies with solids accumulation

Operating & Cleaning Specifications

Application

Product

TMP Range kPa (psig)

Max. Operating Temp. °C (°F)

Operating pH Range

Max. Cleaning Temp. °C (°F)

Cleaning pH Range

Max. Cl2 Conc’n (ppm)

MBR

ZeeWeed 500D RX12

-55 to 55
(-8 to 8)

40 (104)

5.0-9.5

40 (104)

2.0 - 10.5 (<30°C)
2.0 - 10.0
(30-40°C)

1,000

Version: Dec-20

Notice:
If your customer insists existing brand, please contact Veolia or its distributors.
If you and your customer accept economical & quick-delivery equivalent of similar or better performance with same warranty, kindly send us an inquiry now.
