General Information

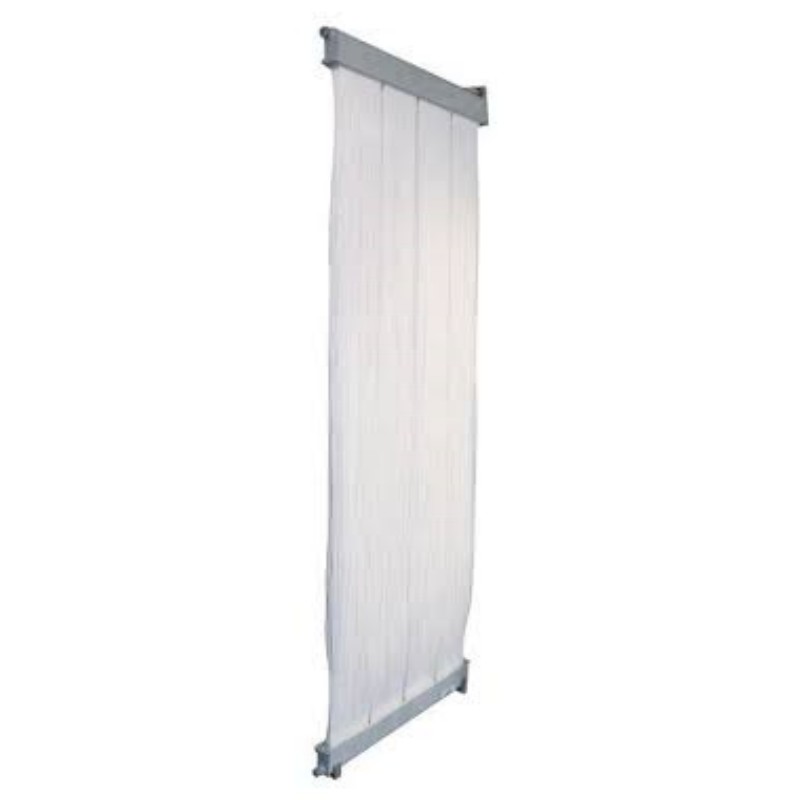

Veolia MBR Membrane is a hollow fiber MBR membrane module made of non-ionic and hydrophilic reinforced PVDF hollow fibers.
Veolia Suez GE MBR Membrane

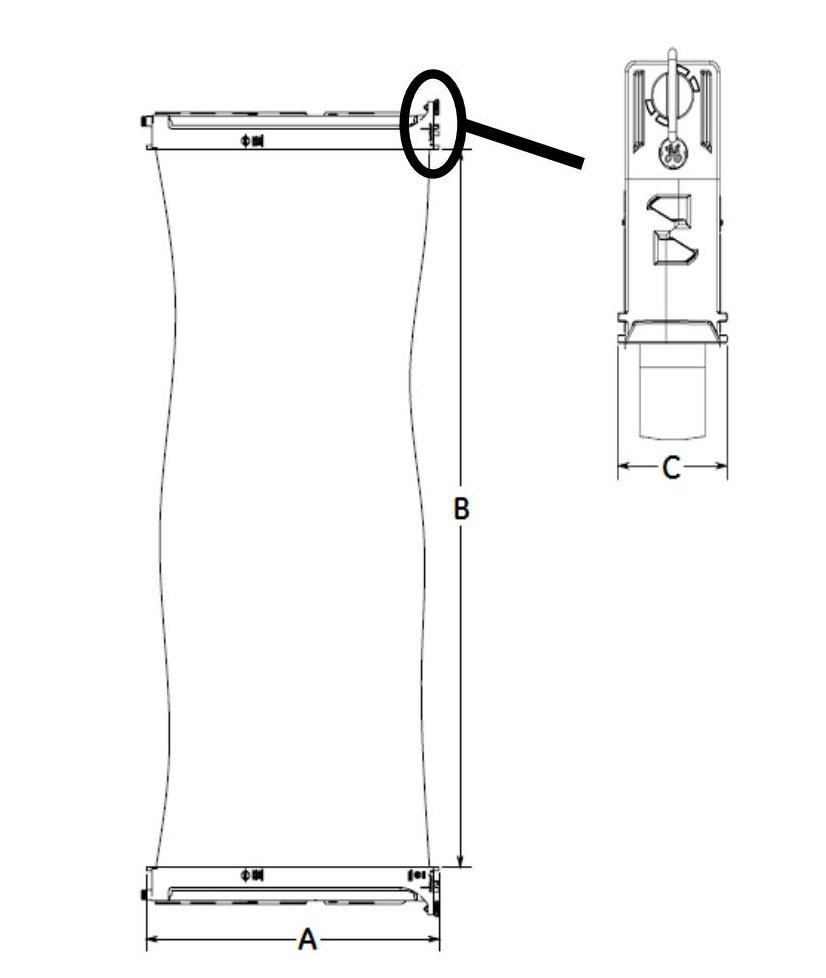

Module Dimensions

Veolia Suez GE MBR Membrane Module Dimensions

Product

Width (A) mm (in)

Height (B)* mm (in)

Depth (C) mm (in)

370, 340

844

(33.2)

1,940

(76.4)

49 (1.9)

440

52 (2.05)

300s

1,577

(62.1)

49 (1.9)

350s

52 (2.05)

* Overall height is 2,198 mm (86.5 inch) and 1,835 mm (72.25 inch).
Module Properties

Application

Product

Nominal
Membrane
Surface
Area m2 (ft2)

Max. Shipping
Weight1
kg (lb)

Lifting Weight2
kg (lb)

Material

Nominal
Pore Size (µm)

Surface
Properties

Fiber Diameter
(mm)

Flow Path

MBR

370

34.4 (370)

28 (61)

28 – 75 (61 – 164)

PVDF

0.04

Non-ionic & Hydrophilic

OD: 1.9
ID: 0.8

Outside-In

300s

27.9 (300)

24 (53)

24 - 58 (53 - 128)

Non-MBR

440

40.9 (440)

32 (70)

30 – 74 (66 – 163)

350s

32.5 (350)

26 (57)

26 - 72 (57 – 159)

All

340

31.6 (340)

26 (61)

26 - 60 (57 - 132)

1 Packaged
2 Varies with solids accumulation

Operating & Cleaning Specifications

Application

Product

TMP Range kPa (psig)

Max. Operating Temp. °C (°F)

Operating pH Range

Max. Cleaning Temp. °C (°F)

Cleaning pH Range

Max. Cl2 Conc’n (ppm)

MBR

370, 300s

-55 to 55
(-8 to 8)

40 (104)

5.0-9.5

40 (104)

2.0 - 10.5 (<30°C)
2.0 - 10.0 (30-40
°C)

1,000

Non-MBR

440, 340, 350s

-90 to 90
(-13 to 13)

Version: Jan-19

Notice:
If your customer insists existing brand, please contact Veolia or it's distributors.
If your customer and you accept economical & quick-delivery equivalent of similar or better performance with same warranty, kindly send us an inquiry now.
