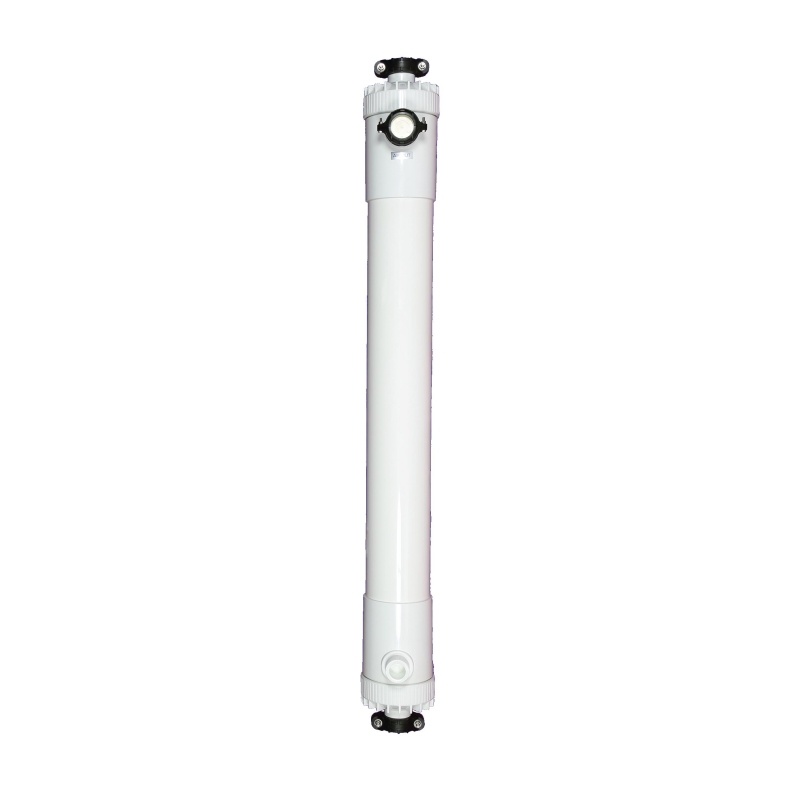

Toray HFUG-2020AN Ultrafiltration UF Membrane

Product No.：HFUG-2020AN
Online Inquiry

General information

Toray's HFUG-2020AN Ultrafiltration UF membrane module is Toray's latest UF innovation that features hollow fi bers with a smaller diameter but with improved membrane durability and performance. The result is an increased surface area per module for more production output.

Toray's HFUG-2020AN Ultrafiltration UF membrane can be used for a wide variety of treatment applications：

Drinking water
Industrial process water
Pretreatment for seawater RO desalination
Secondary and Tertiary wastewater

Toray HFUG-2020AN Ultrafiltration UF Membrane Product Data Sheet

Product Specifications

Type

Mode of Filtration

Material

Pore Size

Operating Process

HFUG-2020AN

Hollow Fiber

Pressurized outside to In

PVDF (Polyvinylidene fluoride)

0.01 μm

Dead-end

Dimensions

Connections	Value
(A) Filtrate Outlet	Housing type joint, 80A
(B) Air Outlet	Housing type joint, 65A
(C) Feed Water / Air Inlet	Housing type joint, 80A

Physical and Operating Specifications

Outer Membrane Surface Area (m²/ft²)	90 /969
Diameter (mm /in)	216 /8.5
Length (mm /ft)	2,160 /7.087
Weight filled with water (kg/lbs)	92 /203
Weight after draining (kg/lbs)	49 /108
Maximum Feed water / Filtrate Flow (m³/h/gpm)	15 /66
Maximum Backwash Flow (m³/h/gpm)	16.8 /74
Maximum Air Flow (Nm³/h/scfm)	9.0 /5.3
Maximum Inlet Pressure (kPa /psi)	300 /43.5
Maximum Backwash Pressure (kPa /psi)	300 /43.5
Normal Operating Transmembrane Pressure (kPa /psi)	0-200 /0-29
Operating Temperature Range (°C /°F)	1-40 /34-104
pH Range During Filtration	1-10
pH Range During Cleaning	0-12
Casing Material	uPVC
Cap Material	uPVC
Potting Material	Epoxy resin
O-ring Material	EPDM

Product Certifications & Compliances

NSF/ANSI 61 for drinking water applications.
NSF/ANSI 419 to comply with the U.S. EPA's Long Term 2 Enhanced Surface Water Treatment Rule (LT2ESWTR), which allows membrane manufacturers to prove Cryptosporidium reduction.
Association of Membrane Separation Technology of Japan.
Korea Water and Wastewater Works Association.

From 01-MB2-01-2305331
