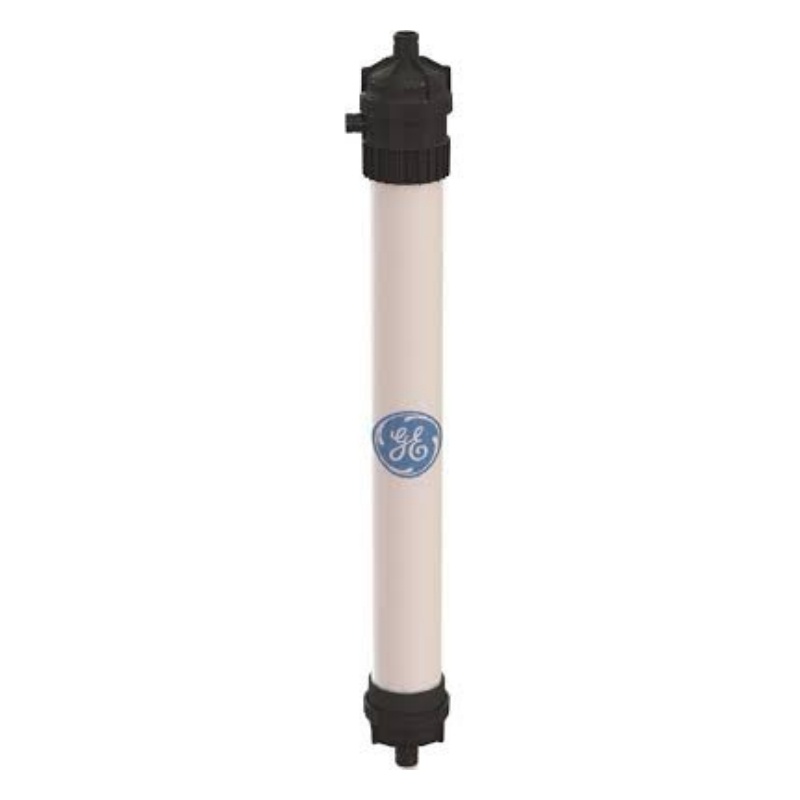

GE ZeeWeed 1500-600 (ZW1500-600)

Product No.：ZW1500-600
Online Inquiry

General Information

As a pioneer of membrane technology, GE leverages decades of research, development, and operational experience in developing one of the most advanced pressurized ultrafiltration technology in the market, ZeeWeed 1500-600. ZeeWeed systems are proven to consistently outperform conventional filtration technology while meeting or exceeding regulatory requirements, regardless of source water quality.

Applications

Versatile and reliable, the pressurized ZeeWeed 1500-600 is ideally suited for use in numerous applications including drinking water treatment, tertiary filtration and RO pre-treatment for brackish water and seawater. Compared to granular filter media, ZeeWeed membranes produce superior water quality and are virtually unaffected by variable raw water quality - all at a cost comparable to conventional filtration technology.

General Properties

0.02 µm nominal pore diameter - for optimal removal of particulates, bacteria and viruses
PVDF hollow fiber membrane - provides high mechanical strength and chemical resistance
Outside-in filtration - provides uniform flow distribution and high solids tolerance

GE ZeeWeed 1500-600 (ZW1500-600) Product Data Sheet

Figure 1

Figure 2

Specifications

Model	GE ZeeWeed 1500-600
Module part number	3098728
Nominal membrane surface area	55.7 m² /600 ft²
Max shipping weight¹	32 kg /70 lb
Lifting weight²	30 - 36 kg /65 - 80 lb
Membrane material	PVDF
Nominal pore size	0.02 micron
Nominal fiber diameter	OD: 1.1 mm, ID: 0.66 mm
Flow path	Outside-In
Housing material	PVC housing with Noryl caps

¹ Packaged

² Varies with solids accumulation

Module Dimensions
Height	1920 mm /75.6 in
Pipe Diameter	180 mm /7.1 in
Permeate Connection	Victaulic
Feed Connection	Victaulic
Reject Connection	Victaulic³

³ Module available with compression permeate and/or threaded reject connection(s)

Operating Parameters

Flow range	45 - 180 m³/day 8 - 33 gpm
Max shell inlet pressure	379 kPa /55 psi
TMP range	0 - 276 kPa /0 - 40 psi
Max temperature	40°C /104°F
Operating pH	5.0 - 10.0
Max Air scour flow	8.3 m³/h 5 dcfm
Max Backwash flow	1.8 m³/hr 8 gpm
Cleaning pH range	2.0 - 12.0
Max chlorine concentration	1,000 mg/L (as NaOCl)4

⁴ NOTE: Higher concentrations are possible depending on feedwater and pH.

Storage and Handling

Modules may be stored in the original factory packaging for up to 1 year prior to installation. Modules must be stored between 5°C and 35°C (41°F to 95°F). Do not expose the membrane module to sources of heat, ignition, or direct sunlight (UV light).

From FSufZW1500-600_EN
