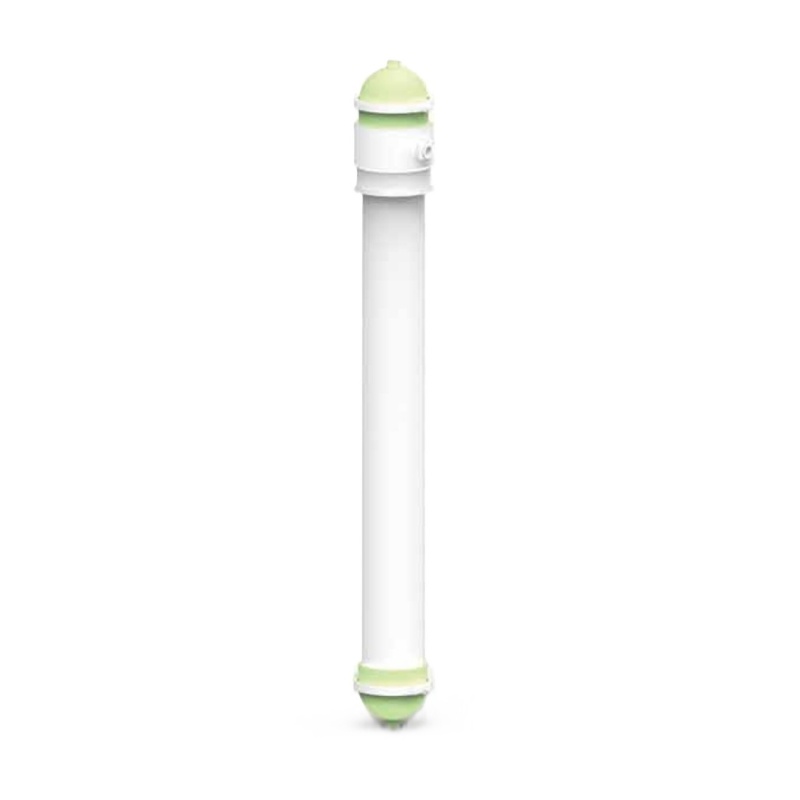

Hyflux Water Filter K-600ET3M0816 Module

Product No.：K-600ET3M0816
Online Inquiry

General Inforamtion

When it comes to filtration, Hyflux’s Kristal® polymeric hollow fibre ultrafiltration membranes and systems offer a superior level of performance, efficiency and reliability. Designed with a cross-flow and out-to-in configuration, Kristal® membranes deliver consistent, high quality product water even in challenging feed water conditions.

Product Features

Enhanced hydrophilic material (PES and PVDF)
Reduced fouling
Consistent, high quality permeate
Enhanced tolerance to cleaning chemicals

Operating Features

Sharp rejection profile
Long lifespan
Small footprint
Automatic backwash function
Efficient system recovery

Key Applications

Water treatment/purification
Pre-treatment filtration
Wastewater recycling
Industrial process/waste fluid treatment

Dimensions

Hyflux Water Filter K-600ET3M0816 Module Dimension

Model

Diameter×Length

(mm /inch)

Membrane Area

(m²/ft²)

K-600ET3M0816

344×2,340 /13.5×92.1

50 /538

Specifications

Membrane Type	K-600ET3M0816
Structure	Asymmetric tri-bore
Material	Modified PES
Outer diameter (mm/inch)	2 / 0.075
Inner diameter (mm/inch)	0.6 / 0.024
Wall thickness (mm/inch)	0.25 /0.010
Nominal Molecular Weight Cut Off (Dalton)	150,000
Bacteria rejection (%)	> 99.9999*
Tensile force (N)	≥ 6

*Verified by accredited third-party laboratory

Operating Parameters

Module	K-600ET3M0816
Feed inlet (inch)	1.5NPT
Permeate outlet (inch)	1.5NPT
Reject outlet (inch)	1.5NPT
Dry weight (kg/lbs)	60 / 132
Wet weight (kg/lbs)	100 / 220
Housing shell	PVC
End caps	PVC
Sealant	Hyflux proprietary composite potting material
Flow type	Outside-in
Operating Temperature Range (°C)	5--40
Clean water flux at 30°C (LMH/GFD)	190 /112
Operating pH Range	2-10
Cleaning pH Range	2-11
Max. NaOCl – cleaning (ppm)	500
Max. NaOCl – continuous (ppm)	10
Operating TMP (bar)	0.2-1.5
Max Feed Pressure (bar)	2.5
Max. backwash TMP (bar)	2.0
Max. cleaning TMP (bar)	2.0

Module Assembly

Each Kristal® module is a collection of thousands of Kristal® UF hollow fibres secured on both ends by a proprietary composite potting material and enclosed in a compact PVC housing.
Every Kristal® module goes through a membrane integrity test before it is delivered to customers.

Item	Description	Material
A	Permeate port	PVC
B	Permeate end cap	PVC
C	O-ring (permeate side)	EPDM
D	Clamps (permeate side)	POM
E	Reject chamber /port	PVC
F	Housing	PVC
G	Feed end cap	PVC
H	Locating base	ABS
