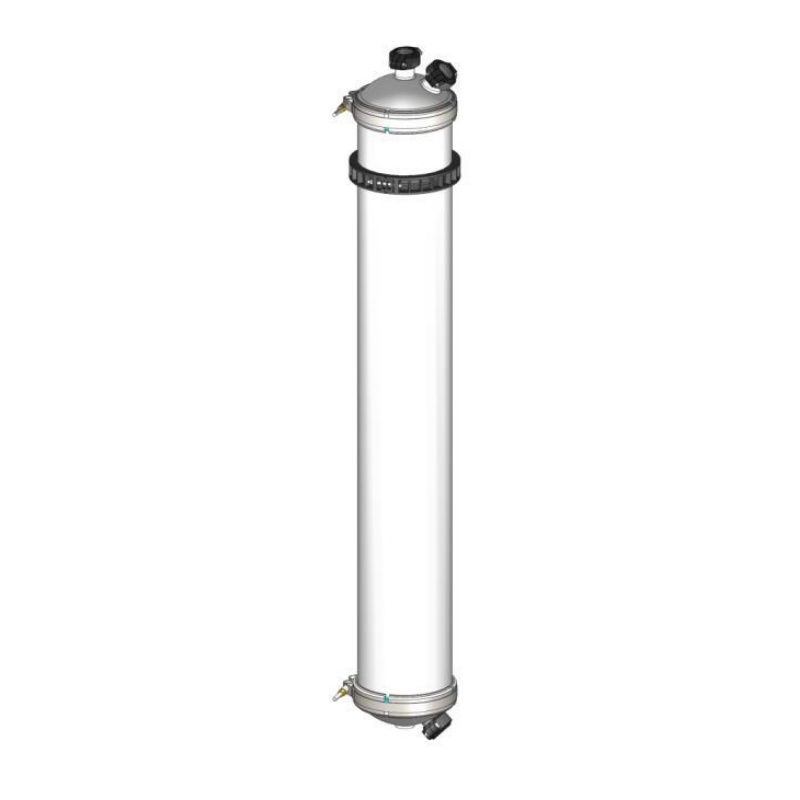

Koch Targa II 10072-35 UF Membrane
- Product No.：TARGA II 10072-35
General Information
Targa II 10072-35 UF Membrane Product Data Sheet
Product Description
|
Membrane Chemistry: |
Proprietary Semi-Permeable Polyethersulfone |
|
Molecular Weight Cutoff: |
100,000 |
|
Housing Shell: |
PVC |
|
Fiber Support Netting: |
Polypropylene/Polyethylene |
|
Permeate Collection Tube: |
PVC |
|
Potting Material: |
Proprietary Compound |
|
Membrane Construction: |
Hollow Fiber |
|
Storage Solution: |
Glycerin/Water |
|
Regulatory Status: |
Classified by UL to NSF/ANSI Standard 61 and in accordance with NSF/ANSI Standard 372 |
Product Specifications
|
|
|
Inch/mm |
ft2/m2 |
|
|
|
|
|
|
|
Figure
Dimensions
|
Model |
Fiber Diameter (ID) |
D Inches (mm) |
L Inches (mm) |
|
Targa II 10072-35 |
0.035 inch/0.9mm |
10.75 /273 |
72 /1829 |
Operating Specifications
|
Model |
Targa II 10048-35 |
|
Max. Pressure (water) |
45 psi (3.0 bar) @ 104º F (40º C) or less |
|
Temperature Range |
32º F (0º C) - 104º F (40º C) |
|
Max. Production Transmembrane Pressure |
30 psi (2.1 bar) |
|
Max. Backflush Transmembrane Pressure |
25 psi (1.7 bar) |
|
Allowable pH Range |
1.5-13 |
|
Max. Total Chlorine @ 77º F (25º C) or lower |
500 ppm @ pH >10 |
|
Typical Cleaning Total Chlorine @ 77°F (25°C) or lower |
200 ppm @ pH >10 |
|
Max. Backflush Total Chlorine @ 77°F (25°C) or lower |
50 ppm @ pH >9 |
Storage
- Indoors, out of direct sunlight.
- Temperatures between 50 – 85°F (10 – 30°C).
- Relative humidity below 70%.
- In a horizontal position.
- Glycerin @ 80 – 100% (best)
- Phosphoric acid @ pH 2 – 3
- Benzoic acid or sodium benzoate @ 1,000 ppm
- Sodium bisulfite or sodium metabisulfite @ 1,000 – 5,000 ppm
Cartridges stored in sodium bisulfite or sodium metabisulfite should be flushed with clean water and impregnated with fresh solution at six-month intervals. Once impregnated the cartridges should be left on the system with all valves closed or removed from the system and sealed in plastic bags. Storage conditions described above for new cartridges should also be used for storage of used cartridges. Cartridges must be drained, rinsed, and cleaned after storage per the pre-startup cleaning instruction sheet packed with each cartridge shipment.
Cartridges Assembly and components
|
Item |
Description |
Required for Single Permeate Removal |
Required for Dual Permeate Removal |
|
1 |
10” HF Cartridge |
1 each |
1 each |
|
2 |
10” HF SS Coupling |
2 each |
2 each |
|
3 |
10” HF Face Seal |
2 each |
2 each |
|
4 |
10” HF K-Ring |
2 each |
2 each |
|
5 |
Permeate O-rings |
4 each |
4 each |
|
6 |
10” Plastic HF End Cap W Port |
1 each |
2 each |
|
7 |
10” Plastic HF End Cap W/O Port |
1 each |
0 each |
|
8 |
10” HF End Cartridge Support |
2 each |
2 each |
|
9 |
10” HF Cartridge Support Hardware |
2 each |
2 each |
|
10 |
2” Groove-End Coupling |
3 each |
4 each |
From 01/15 Rev 15-1
